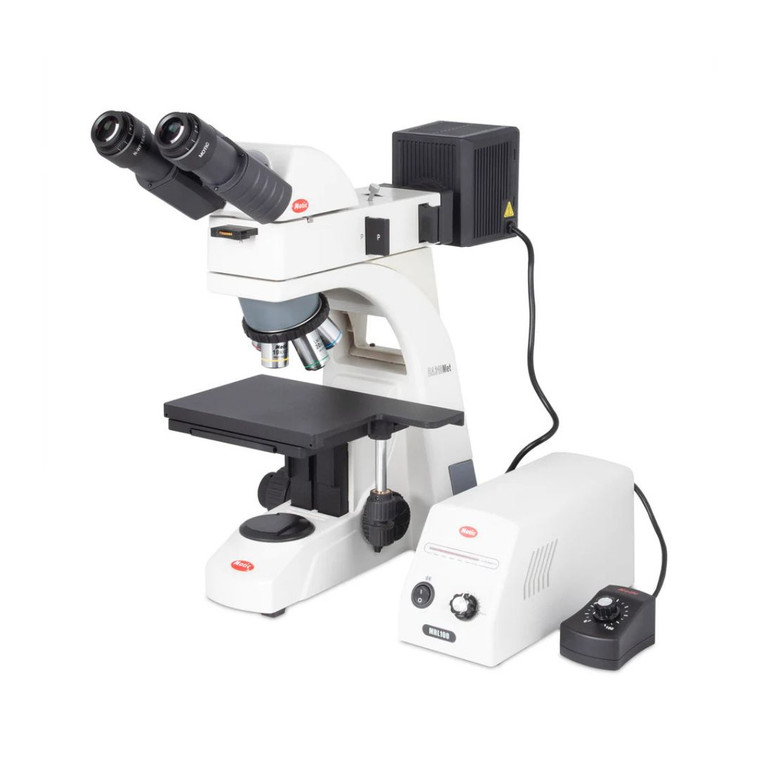

Motic® BA310 MET Binocular Microscope
Motic®
$4,313.00
$4,313.00
$3,449.99
(You save
$863.01
)
Earn points on this purchase
Model | BA310 MET Binocular | BA310 MET Trinocular |
Observation tube | Binocular head, Siedentopf type, 360° swiveling | Trinocular head, Siedentopf type, 360° swiveling |
Optical system | Colour Corrected Infinity Optical System (CCIS®) | Colour Corrected Infinity Optical System (CCIS®) |
Diopter adjustment | On both eyepieces, +/- 5 diopter | On both eyepieces, +/- 5 diopter |
Eyepieces | Widefield N-WF10X/20mm with diopter adjustment | Widefield N-WF10X/20mm with diopter adjustment |
Fine focus precision | 2µm | 2µm |
Focus mechanism | Coaxial coarse and fine focusing system with tension adjustment | Coaxial coarse and fine focusing system with tension adjustment |
Focusing stroke | 30mm | 30mm |
Illumination features | External lamp house for Epi-illuminator | External lamp house for Epi-illuminator |
Illumination interchangeability | Quartz halogen 12V/50W or LED 3W | Quartz halogen 12V/50W or LED 3W |
Incident illumination | Quartz halogen 12V/50W with integrated field and aperture diaphragms | Quartz halogen 12V/50W with integrated field and aperture diaphragms |
Inclination | 30° inclined | 30° inclined |
Interpupillary distance | 48-75mm | 48-75mm |
Nosepiece | Reversed quintuple | Reversed quintuple |
Objective classification | CCIS® EC Plan Achromatic, DIN | CCIS® EC Plan Achromatic, DIN |
Objective mounting thread | W 4/5"x1/36" (RMS standard) | W 4/5"x1/36" (RMS standard) |
Objectives | 5X/0.13 (WD 20.3mm), 10X/0.25 (WD 17.5mm), 20X/0.40 (WD 8.1mm), 50X/0.55 (WD 8.4mm) | 5X/0.13 (WD 20.3mm), 10X/0.25 (WD 17.5mm), 20X/0.40 (WD 8.1mm), 50X/0.55 (WD 8.4mm) |
Polarization | Optional sliders | Optional sliders |
Stage | Mechanical stage, hard coated with built-in low position coaxial stage control | Mechanical stage, hard coated with built-in low position coaxial stage control |
Stage size | 180x140mm | 180x140mm |
Stand type | Upright | Upright |
Standard contrast technique | Brightfield | Brightfield |
Travel range X&Y | 75x50mm | 75x50mm |
Upper limit stop | Upper limit stop preset but adjustable | Upper limit stop preset but adjustable |
Transformer | External | External |
Power supply | 100-240V (CE) | 100-240V (CE) |
Accessories included | Dust cover, power cord, Allen key | Dust cover, power cord, Allen key |
Dimensions LxWxH | 508x240x465mm | 508x240x465mm |
Weight Net | 12.5kg | 12.7kg |
