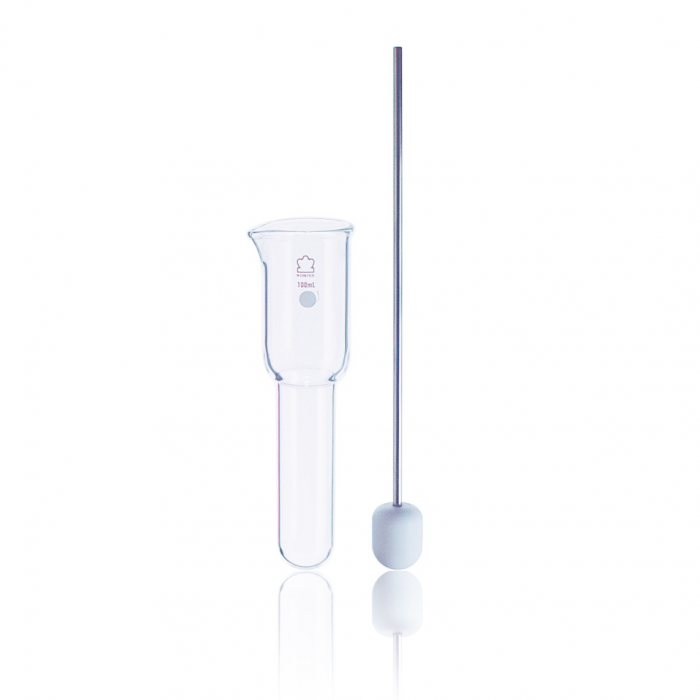

KIMBLE® KONTES® 100mL Large Volume Potter-Elvehjem Tissue Grinder, with PTFE Pestle and Glass Tube, 1/Case

• Manufactured from borosilicate glass 3.3
• Tube has a convenient pouring lip
• Radial serrations on the lower portion of the pestle deliver the homogenate into the cylindrical portion of the tube
• PTFE Pestle with stainless steel rod
• Replacement components are available and completely interchangeable
• Replacement tube is 885303-0100
• Clearance between pestles and tubes is 0.004 " to 0.006 "

KIMBLE® KONTES® Large Volume Potter-Elvehjem Tissue Grinder, with PTFE Pestle and Glass Tube produce homogenates by a combination of shearing and compression actions. The tissue sample is progressively ground (sheared) into smaller pieces at the rounded end of the pestle as the spinning pestle is lowered into the tube. As the pestle is forced lower into the tube, the sample is displaced and forced between the straight outside wall of the pestle and the inside wall of the tube, compressing the tissue cells until they rupture. When the tube is pulled away from the pestle, a slight vacuum is created that pulls the sample back past the compression area, resulting in an additional homogenization stroke. The degree of homogenization is controlled by the clearance between the pestle’s and tube’s cylindrical section (radial distance usually 0.002 - 0.003 inches), the rotational speed of the pestle, and the number of compression strokes made. We offer three basic types of tissue grinders: Dounce, DUALL and Potter-Elvehjem. The Potter-Elvehjem tissue grinder has rounded shape on the lower portion of the pestle where th sample is progressively ground smaller. Ground glass pestle versions are suited for connective tissues whereas PTFE pestle versions are used with softer tissues.
