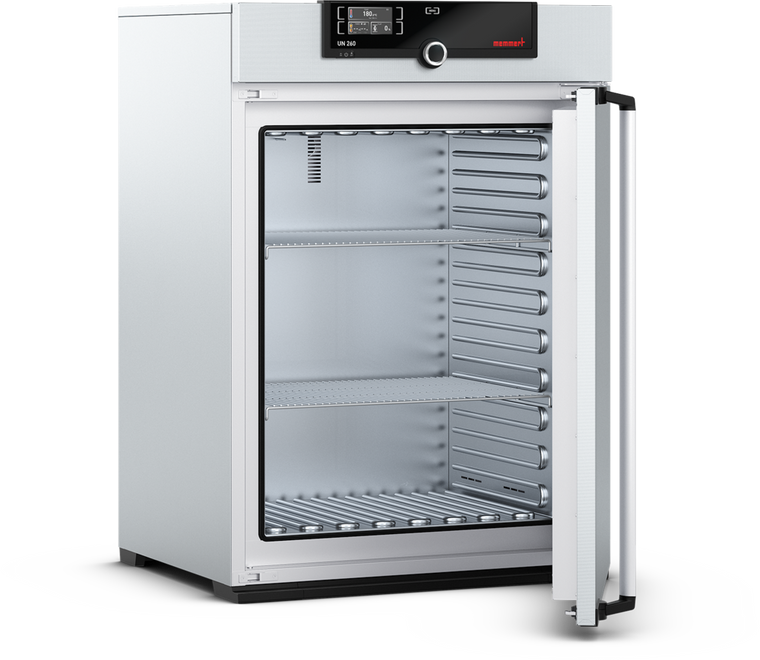

Memmert® UN260, General-Purpose Gravity Oven, 256L | 9 cu. ft.

Memmert®

SKU:

UN260

$5,371.00

Net 30 Terms Available

Earn points on this purchase

Memmert® UN260 natural convection lab oven has a capacity of 9 Cu Ft (256 L) with a temperature range of Ambient +5° to 300°C and comes with a single digital display controller. Memmert UN series natural convection heating and drying ovens offer 300°C maximum temperatures with digital control. These ovens have universal app…

Quantity:

*We accept purchase orders from private, public, educational, & government institutions

Current Stock:

Request a Quote Request a Sample

Technical Specifications:
Volume approx.	9 Cu Ft (256 L)
Temperature range	+5°C above ambient temperature to +300°C
Setting temperature range	+20° to +300°C
Setting accuracy °C	up to 99.9: 0.1 / from 100: 0.5
Contoller	SingleDISPLAY: TFT color touchscreen, manage data, save log files, monitor up to 32 devices online, automatic alarms emailed
Interfaces	Ethernet
Housing	Textured stainless steel, rear zinc-plated steel, TFT color display with touchscreen, fully insulated stainless steel door
Interior	Stainless steel (ASTM 304) with all-round deep-drawn ribs to integrate the large-area heating with ceramic-metal sheath
Fresh air	Admixture of pre-heated fresh air by electronically adjustable air flap
Chamber Dimensions (W x H x D)	25.2 x 31.5 x 19.7 inches (640 x 800 x 500 mm)
Maximum number of grids/shelves	9 (2 included)
Maximum loading per grid/shelf	44 lbs (20 kg)
Maximum loading of chamber	661 lbs (300 kg)
Maximum loading per slide-in drip tray	8.8 lbs (4 kg)
Maximum loading per bottom drip tray	8.8 lbs (4 kg)
Exterior Dimensions (W x H x D)	32.4 x 46.6 x 26.9 inches (824 x 1183 x 684 mm)
Standard works calibration certificate (measuring point chamber center)	°C +160
Electrical	115 V, 50/60 Hz, 1800 Watts (230 V available)
Net weight approx.	242.5 lbs (110 kg)
Gross weight (packed in carton) approx.	354.9 lbs (161 kg)
Shipping Dimensions (W x H x D)	36.6 x 54.3 x 36.6 inches (930 x 1380 x 930 mm)
