Lumenera's INFINITY3S-1UR (AU-141SURC-CCD) is a high-speed, high sensitivity research-grade camera with a 1.4 megapixel resolution. The INFINITY3S-1UR incorporates Sony's remarkable ICX825 CCD sensor, producing much higher dynamic range and sensitivity over the popular ICX285 sensor. Lumenera's high-speed USB 3.0 data interface provides m…
Read More

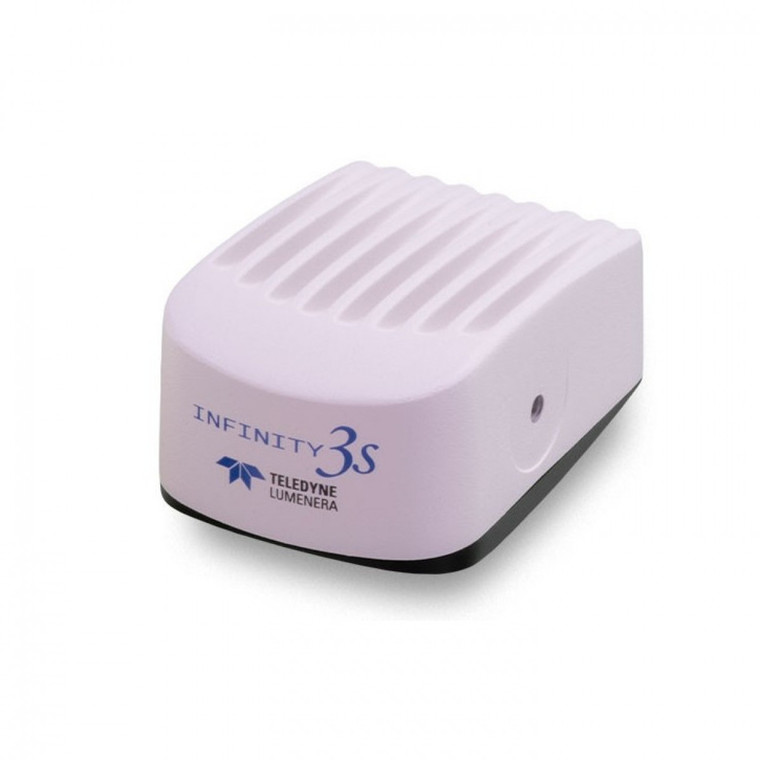

Lumenera's INFINITY3S-1UR (AU-141SURC-CCD) is a high-speed, high sensitivity research-grade camera with a 1.4 megapixel resolution. The INFINITY3S-1UR incorporates Sony's remarkable ICX825 CCD sensor, producing much higher dynamic range and sensitivity over the popular ICX285 sensor. Lumenera's high-speed USB 3.0 data interface provides maximum allowable throughput and offers USB 2.0 compatibility. Full resolution images can be sent to a host computer at an industry leading 60 frames per second (fps)*. The research-grade designation of the INFINITY3S-1UR is a testament to the low noise electronics, high-grade components and unique thermal management techniques. The result is an industry-leading, high-performance, low noise digital camera, alone in its class. This microscopy camera is designed for use in a wide variety of scientific, life science, clinical and industrial applications requiring optimal color reproduction, extreme sensitivity, increased resolution and high speed.
The INFINITY3S-1UR has the unmatched light sensitivity needed for low light applications. The new ICX825 sensor with Sony's EXview HAD II technology is 70% more sensitive than the popular ICX285 sensor. This camera offers high QE, 6.45 x 6.45 μm pixels, high dynamic range and very low noise. The INFINITY3S-1UR delivers outstanding image quality and value for challenging low light applications such as fluorescence and NIR imaging.
INFINITY CAPTURE, an intuitive image capture program, and INFINITY ANALYZE, a full image analysis package offering; camera control, measurement, annotations, tiling and post capture enhancement, are both included. Camera and software combine to create a complete microscopy imaging solution for your application.
All Lumenera cameras are supported by an experienced team of technical support and imaging experts widely acclaimed in the industry. As a Lumenera customer you gain access to the TAC group and knowledge base, providing full support for cameras, software and microscopy applications.
Features:
- Industry leading Sony EXview HAD II sensor technology with 70% improvement in sensitivity over ICX285
- Color or monochrome ICX825 CCD Global Shutter sensor with 2/3" optical format providing a resolution of 1392 x 1040 using 6.45 x 6.45 μm pixels
- Faster frame rates vs. the ICX285 sensor. Fastest ICX825 camera with 60 fps* at full resolution and 16-bit output
- High-speed USB 3.0 interface for fastest image delivery and simplified connectivity. USB 2.0 supported.
- GPIO for control of peripherals and synchronization
- Region of Interest (ROI) option to provide higher frame rates
- Selectable 8 or 14-bit pixel data
- Selectable tap readout, matching sensor performance to your application
- Multiple frame rates supported, each optimized for lowest noise performance
- Software compatible with Windows 10, 8, 7, Vista, Mac OS X 10.7, 32 and 64-bit operating systems
- Includes TWAIN and DirectX/ Direct Show support
- Support for capture and analysis applications such as MetaMorph and Micro-Manager
- Recommended coupler: 0.67x
- Four (4) Year Warranty
