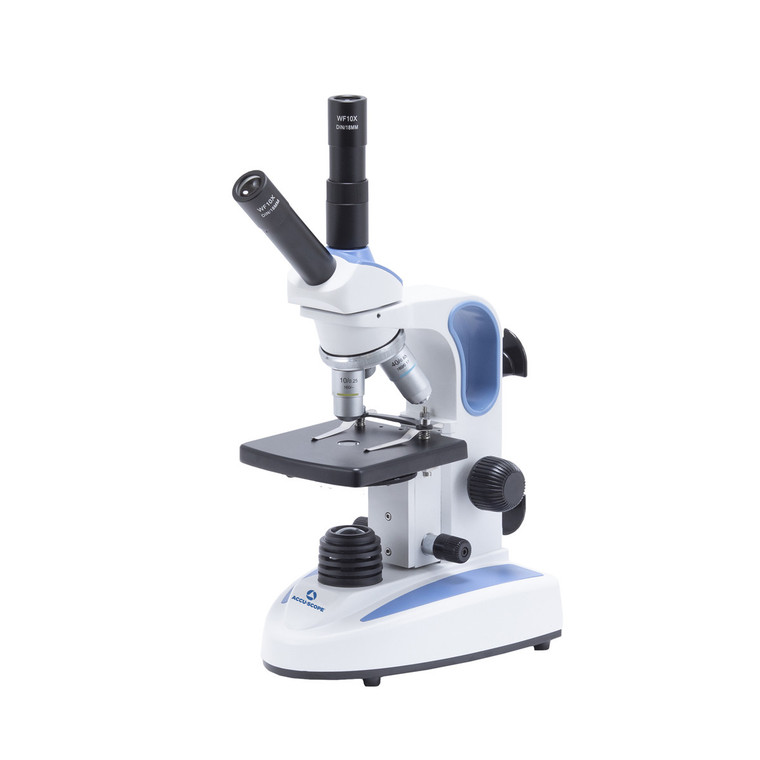

Accu-Scope® EXM-150-VT-EP, Monocular Cordless, Vertical Teaching Microscope with Disc Diaphragm, Rechargeable, 5.1MP Digital Eyepiece Camera

Specifications

• Includes ACCU-CAM 500 eyepiece camera (CAT# AU-500-EP); 5MP camera fits into the eyetube and connects to Windows PC or Mac via provided USB 2.0 cable; operate the camera and acquire images and video using ACCU-View or ACCU-View LITE software (for the latest version, visit here: https://accu-scope.com/support/software-updates
• Optical System: DIN Optical System, f=160mm.
• Viewing Head: Monocular inclined head; Monocular dual inclined teaching head, inclined 45°and 360° rotatable; Monocular inclined head 45° with vertical teaching viewer.
• Eyepieces: WF10x eyepiece, 18mm field of view with pointer. Eyepiece is locked-in to prevent classroom tampering.
• Nosepiece: Rear facing three-hole, ball bearing nosepiece with positive click stops to ensure parcentration.
• Objectives: Standard configuration includes DIN achromat 4x, 10x and 40xR* objectives. (*spring-loaded).
• Stage: Stage size 119mm X 119mm with stage clips.
• Condenser: N.A. 0.65 condenser with five aperture disc.
• Stand: Cast alloy aluminum with built-in carry handle and cord hangers.
• Illumination: Variable and rechargeable LED illuminator. LED illuminators will last approximately 4 hours on a single charge and the expected bulb life is 20,000 hours. 3500mAh NiMH rechargeable battery.
• Focusing System: Separate coarse and fine focus adjustment controls. A tension adjustment is on the coarse control. A built-in slip clutch system and pre-set focus stop prevents accidental damage to objectives and slides.
• Accessories: Dust cover and instruction manual included.
• Certification: ISO 9001: 2018 and ISO 14001: 2018; CE; RoHS
• Warranty: 5-year limited warranty for parts, labor and electronic components; 1-year warranty on LED bulb
• Microscope Dimensions (LWH): 238mm x 184mm x 381mm
• Physical Weight: 8 lbs.
• Shipping Dimensions: 19x15x13 inches
