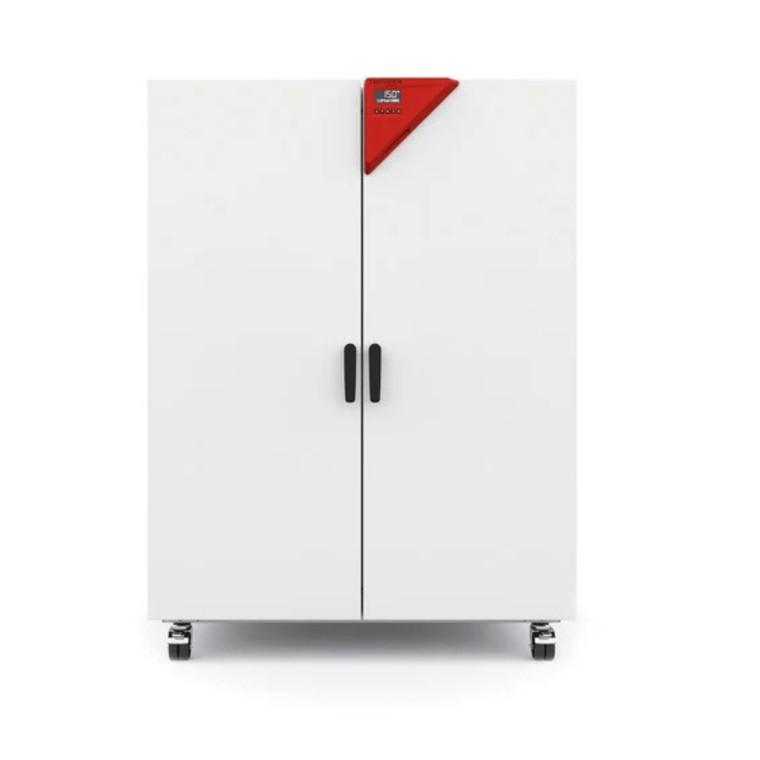

Binder® Model ED 720, Drying and Heating Chambers with Gravity Convection, 26 Cu Ft (743 L), 400V

Binder™

SKU:

9010-0341

$9,759.00

Net 30 Terms Available

Earn points on this purchase

The strengths of a BINDER ED series Avantgarde.Line drying chamber include routine drying and sterilization tasks up to 300°C. Thanks to the natural convection, all thermal processes which use this drying chamber are highly efficient. The ED series ensures fast, uniform drying. Temperature range: ambient temperature plus 5°C to 300°…

Quantity:

*We accept purchase orders from private, public, educational, & government institutions

Current Stock:

Request a Quote Request a Sample

Brochure

Operating Manual

Data Sheet

Technical specifications

Imperial Metric

Article Number	9010-0341
Designation	ED720-400V-I
Option model	Standard

Article Number	9010-0341
Temperature range	+5 °C above ambient temperature to 300 °C
Temperature uniformity at 150°C	3.2 ± K
Temperature fluctuation at 150°C	0.8 ± K
Heating up time to 150°C	85 min
Recovery time after door was opened for 30 s at 150°C	25 min

Article Number	9010-0341
Air change rate at 100°C	2 x/h

Article Number	9010-0341
Rated Voltage	400 V
Power frequency	50/60 Hz
Nominal power	4,1 kW
Unit fuse	16,0 A
Phase (Nominal voltage)	3~/N/PE

Article Number	9010-0341
Interior volume	26 cu.ft.
Net weight of the unit (empty)	373 lbs
Load per rack	99 lbs
Permitted load	694 lbs
Wall clearance back	6,3 in
Wall clearance sidewise	3,94 in

Article Number	9010-0341
Width net	45.87 in
Height net	62.6 in
Depth net	34.25 in

Article Number	9010-0341
Interior width	37.8 in
Interior height	50.39 in
Interior depth	23.82 in
Unit doors	2

Article Number	9010-0341
Energy consumption at 100°C	380 Wh/h
Energy consumption at 150°C	700 Wh/h

Article Number	9010-0341
Number of shelves (std./max.)	2/16

Binder® Model ED 720, Drying and Heating Chambers with Gravity Convection, 26 Cu Ft (743 L), 400V

Technical specifications

Data

Performance Data Temperature

Air change data

Electrical data

Dimensions and weights

Housing dimensions not incl. fittings and connections

Internal Dimensions

Environment-specific data

Fixtures
