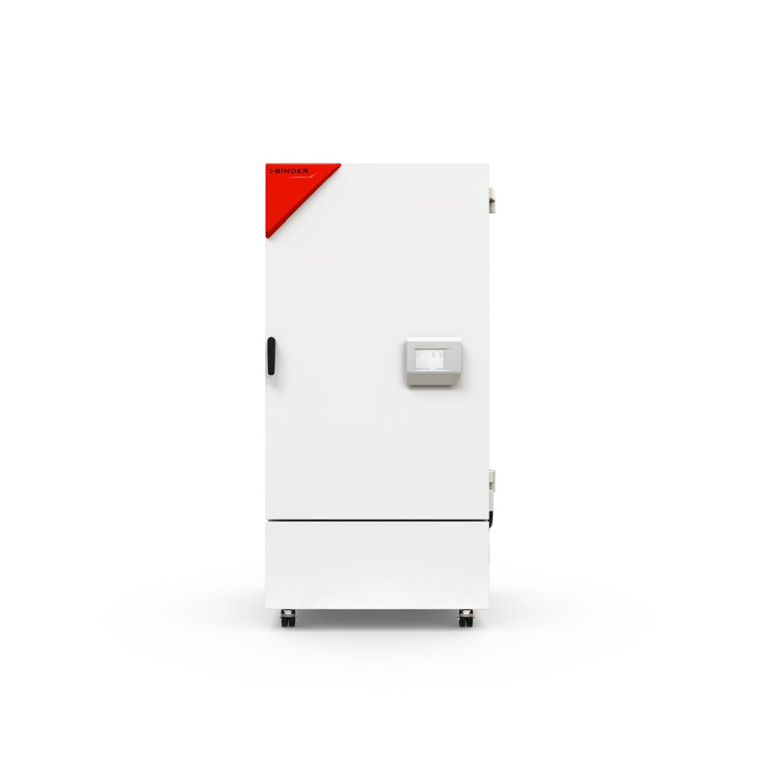

Binder® Model KBF PRO 470, Humidity Test Chambers with Expanded Temperature / Humidity Range, 17 CU FT (481 L), 230V
Binder™
$35,173.00
Earn points on this purchase
| Temperature range | -20 to 100°C |
|---|---|
| Max. heat compensation at 40°C | 800 Watts |
| Temperature range with humidity | 10 to 90°C |
| Humidity range | 10 to 98% RH |
| Temperature uniformity at 25°C and 60% RH | 0.3 ± K |
| Temperature uniformity at 40°C and 75% RH | K 0.3 ± K |
| Temperature fluctuation at 25°C and 60% RH | 0.1 ± K |
| Temperature fluctuation at 40°C and 75% RH | 0.1 ± K |
| Humidity fluctuation at 25°C and 60% RH | 1 ± % r.F. |
| Humidity fluctuation at 40°C and 75% RH | 1 ± % r.F. |
| Recovery time after door was opened for 30 s at 25°C and 60% RH | 1 min |
| Recovery time after door was opened for 30 s at 40°C and 75% RH | 4 min |
| Power frequency | 120 Volt 50/60 Hz 1.6 kW |
| Unit fuse | 16.0 Amps |
| Phase (Nominal voltage) | 1~ |
| Interior volume | 17 cu. ft. |
| Net weight of the unit (empty) | 549 lbs |
| Load per rack | 88 lbs |
| Permitted load | 198 lbs |
| Wall clearance back | 3.94 inches |
| Wall clearance sidewise | 7.09 inches |
| Width net | 36.61 inches |
| Height net | 76.81 inches |
| Depth net | 35.43 inches |
| Interior width | 25.83 inches |
| Interior height | 49.21 inches |
| Interior depth | 22.64 inches |
| Inner Doors | 1 |
| Sound-pressure level at 25° | 50 dB(A) |
| Number of shelves (std./max.) | 2/16 |
