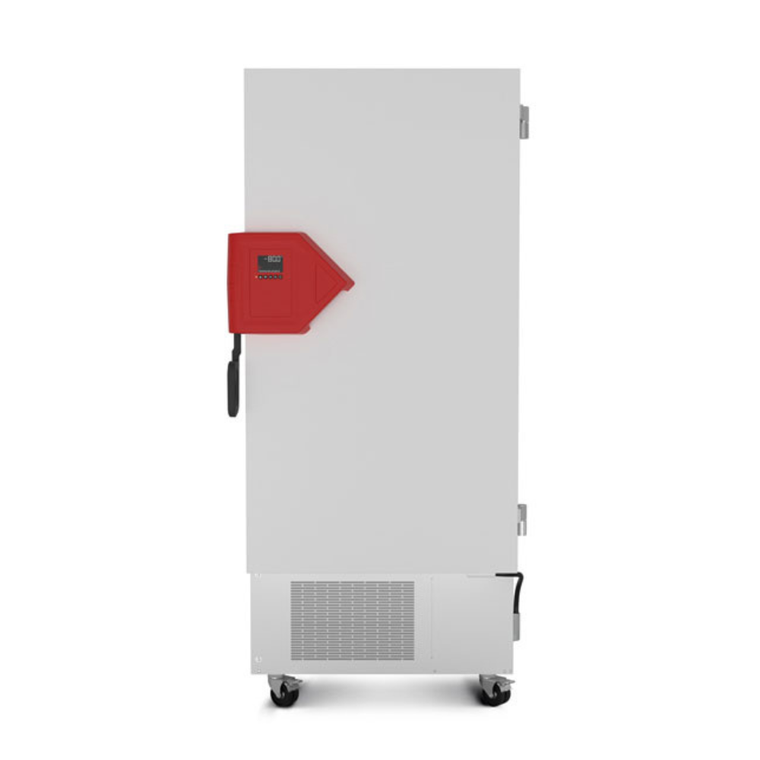

Binder® Model UF V 500, Ultra-low Temperature Freezers with Climate-Neutral Refrigerants, 16.8 Cu Ft (477 L), 120V

Binder™

SKU:

9020-0351

$18,621.00

Net 30 Terms Available

Earn points on this purchase

The BINDER UF V 500, ultralow temperature freezer has a capacity of 16.8 Cu Ft (477 L) and a temperature range -40° to -86°C and requires 120V power. The BINDER ultralow temperature freezer ensures safe long-term storage of samples at a temperature of -86°C. It is based on a multi-stage security concept, which offers everything from…

Quantity:

*We accept purchase orders from private, public, educational, & government institutions

Current Stock:

Request a Quote Request a Sample

Brochure

Operating Manual

Data Sheet

Technical Specifications:
Temperature range [°C]	-86 - -40
Temperature variation at -80 °C [± K]	2.5
Cooling down time from 25 °C to -80 °C [min]	360
Warm-up time during power failure from -80 °C / -122 °F to -60 °C / -76 °F [min]	150
Rated Voltage [V]	120
Power frequency [Hz]	60
Nominal power [kW]	1.1
Unit fuse [A]	16
Phase (Nominal voltage)	1~
Overall Width [in]	32.7
Overall Height [in]	78.2
Overall Depth [in]	34.87
Wall clearance back [in]	3.94
Wall clearance sidewise [in]	6.9
Unit doors	1
Chamber Width [in]	24.39
Chamber Height [in]	51.2
Chamber Depth [in]	23.64
Interior volume [cu.ft.]	17
Net weight of the unit (empty) [lbs]	705
permitted load [lbs]	441
Permitted load of individual compartment [lbs]	110
Load per rack [lbs]	110
Energy consumption at set-point -80 °C and ambient temperature = 25 °C (+/- 10 %) [kWh/d]	12.5
Sound-pressure level [dB(A)]	49
Number of shelves (std./max.)	3/7
Freezer racks per compartment	4
Cryoboxes, 50 mm	352
