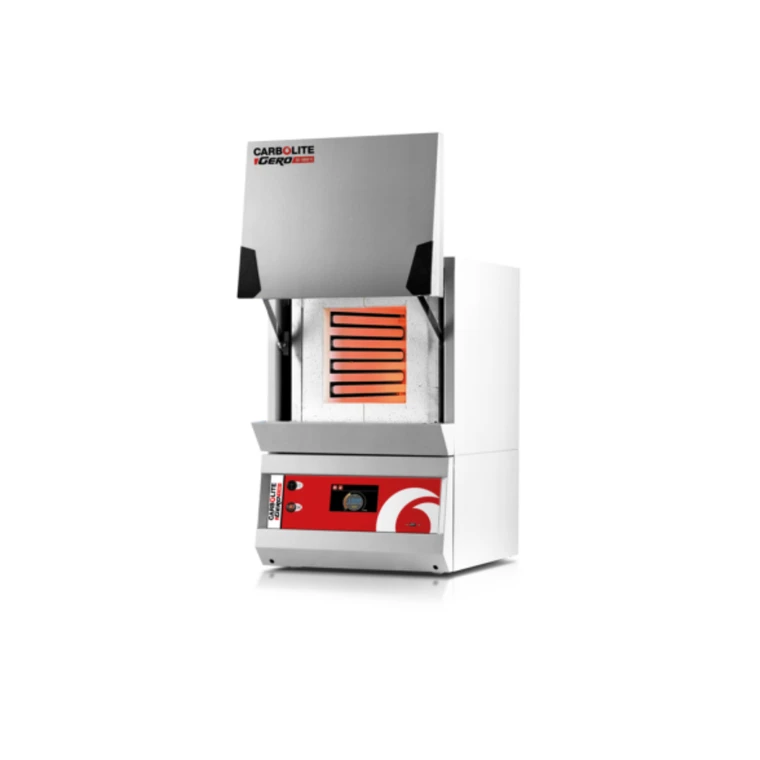

Carbolite™ CWF1323C Chamber Furnace, 23L

The Carbolite Gero CWF range is a series of bench-mounted general-purpose laboratory chamber furnaces designed for high-temperature applications up to 1300°C. Available in five chamber sizes from 5 to 65 litres, these furnaces are suitable for a wide range of heat treatment and material testing processes. The CWF-B models feature enhanced airflow via air inlet holes in the door and a tall chimney for rapid removal of fumes, while the CWF-BAL models include an integrated balance for thermogravimetric analysis (TGA) and loss on ignition (LOI) applications, enabling continuous monitoring of sample weight during heating.

Main features:

Maximum operating temperatures: 1100°C, 1200°C, or 1300°C
Chamber capacities: 5, 13, 23, 36, or 65 litres
Carbolite Gero 301 controller with single ramp-to-set-point and process timer
Vertical lift door keeps heated surfaces away from the user
Soft-closing door on 5, 13, 21, and 23 litre models
Delayed start and process timer function as standard
Hard-wearing alumina element carrier, furnace entrance, and hearth
Energy-efficient low thermal mass insulation
Free-radiating wire heating elements for optimum uniformity
Easy access to elements and controls for simplified maintenance and servicing
CWF-B models include enhanced airflow via chimney and door vents for full combustion
CWF-BAL models include integrated balance for TGA/LOI applications
Balance operates independently of furnace control system with computer monitoring software
Balance capacity up to 3 kg with 0.01 g resolution (other configurations available)
