Compatible with single cylinders

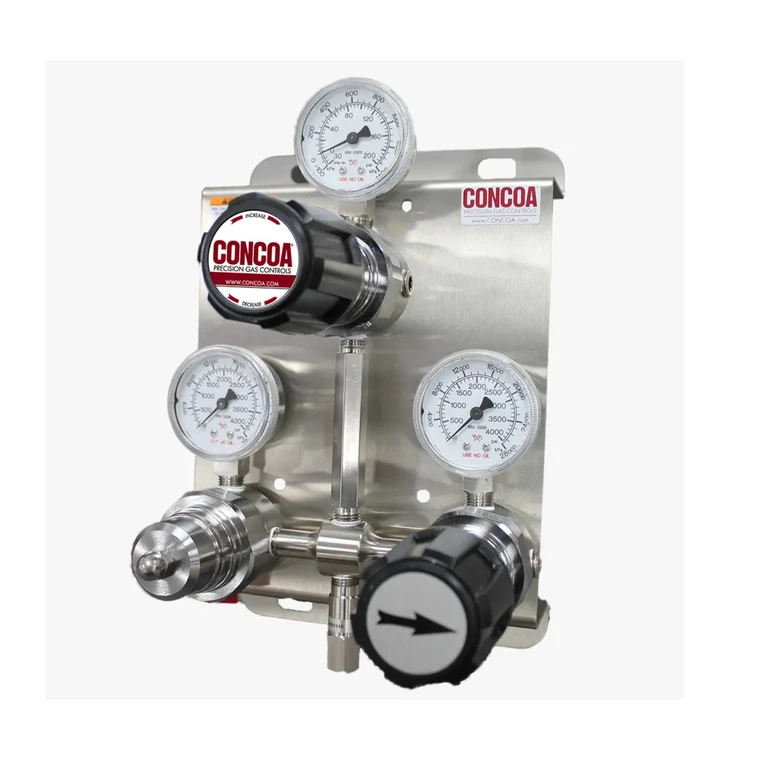

CONCOA™ 527 Series Automatic Gas Switchover System
CONCOA™
$10,442.00
Earn points on this purchase
| Maximum Inlet Pressure | 3000 PSIG (210 BAR); 4500 PSIG (310 BAR) optional |
|---|---|
| Temperature Range | -40°F to 140°F (-40°C to 60°C) |
| Gauges | 2 in (50 mm) stainless steel |
| Outlet Connections | 1/4 in MNPT (without line regulator); 1/4 in FNPT (with line regulator) |
| Helium Leak Integrity | 1 × 10⁻⁸ scc/sec |
| Cv | 0.1 |
| Weight | 8.5 lbs (3.85 kg) |
| Regulator Bodies | 316L Stainless Steel |
| Diaphragms | 316L Stainless Steel |
| Seats | PCTFE (inlet regulators); PTFE (line regulators) |
| Filters | 10-micron 316 mesh |
| Internal Seals | PTFE |
| Standard Transducers (Optional) | 0–6000 PSIG (4–20 mA output) |
| Intrinsically Safe Transducers (Optional) | 0–5000 PSIG (4–20 mA output) |
| Conformances | Cleanliness meets or exceeds CGA G-4.1; ANSI/ASME B40.1; PED 2014/68/EU; CRN OH5216.5; CRN OH15806.5 |
| Warranty | 1 Year |
