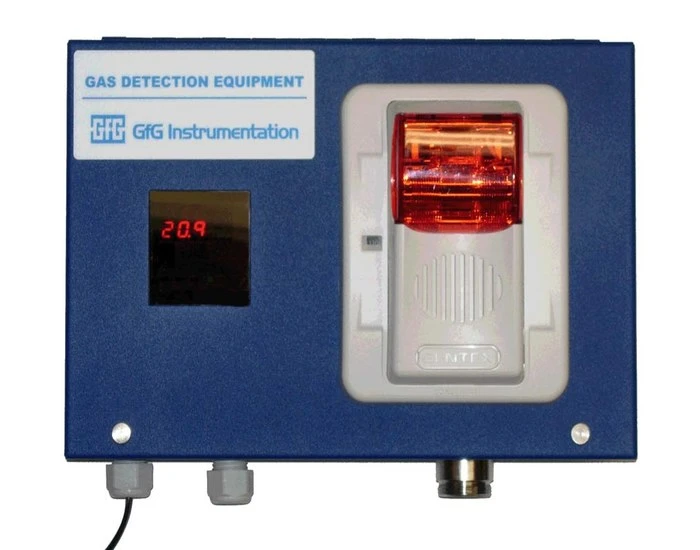

GfG®​​ Dynagard 25 (2210-030) - Oxygen (O2) Monitoring Fixed System

GfG Dynagard 25 Series for O2 Monitoring Fixed System is a single point detection monitor that accurately measures oxygen levels then displays values on a large backlit LED and can transmit a linear 4-20 mA output. The alarm point values can be freely adjusted within the detection range of the transmitter. The controller provides four voltage-free relays for the three alarms and one fault warning. The comprehensive electronics allow for easy operation and maintenance and also increase operational safety and accuracy. In less than 2 seconds, the integrated ZD 21 Zirconia Sensor responds to an oxygen deficiency.

Key Features:

• Easy Installation
• Local display and horn / strobe
• Adjustable alarm points
• On-board relays for external controls
• 4-20 mA output
• Monitors: O2
