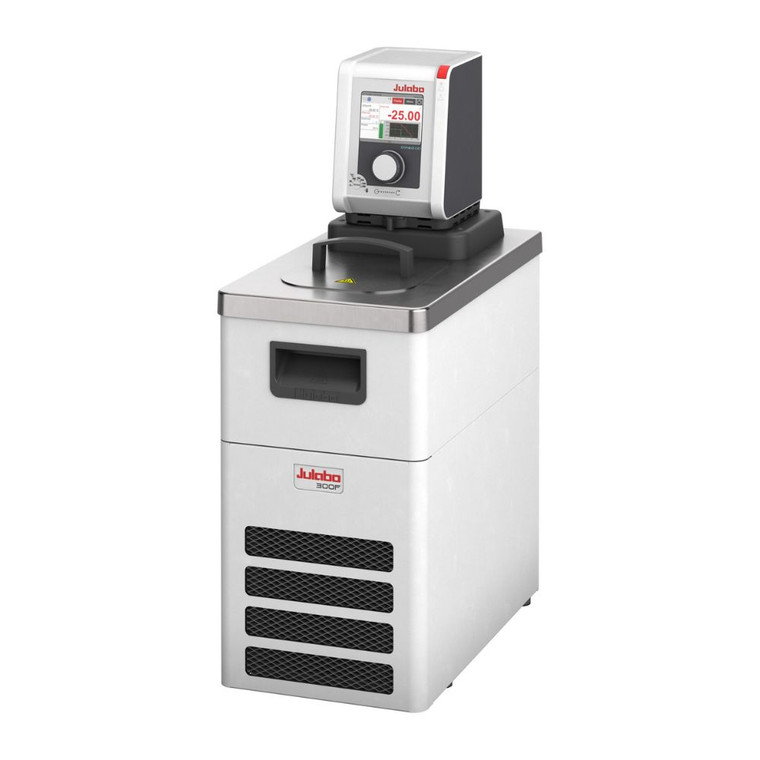

Julabo® DYNEO™ DD-300F Refrigerated Circulators, 100-230V/50-60Hz
Julabo®Earn points on this purchase
|
Model |
DD-300F |
|
Dimensions (W × L × H) |
9.4 x 16.5 x 26 in. |
|
Filling volume |
3 ... 4 l |
|
Weight |
61.1 lbs |
|
Pump connections |
M16x1 male |
|
Barbed fittings inner diameter |
8/12 mm |
|
Working temperature range |
-25 ... +200 °C |
|
Temperature stability |
±0.01 °C |
|
Setting the resolution of the temperature display |
0.01 °C |
|
Ambient temperature |
+5.0 ... +40.0 °C |
|
Data based on voltage version: |
115V/60Hz (Nema N5-15 Plug) |
|
Heating capacity |
1 kW |
|
Cooling capacity (Medium: Ethanol) |
200°C = 0.3 kW / 20°C = 0.3 kW / 10°C = 0.3 kW / 0°C = 0.27 / -10°C = 0.19 / -20°C = 0.08 kW |
|
Pump capacity flow rate |
8 ... 27 l/min |
|
Pump capacity flow pressure |
1.5 ... 10.2 psi |
|
Viscosity max. |
50 cST |
|
Refrigerant stage 1 |
R134a |
|
Global Warming Potential for R134a |
1430 |
|
Filling volume |
100 g |
|
Carbon dioxide equivalent |
0.143 t |
|
Bath tank |
Stainless steel |
|
Bath cover |
integrated |
|
Usable bath opening (W x L / D) |
5.1 x 5.9 / 5.9 in. |
|
Cooling of compressor |
1-stage Air |
|
Classification according to DIN12876-1 |
Classification III (FL) |
|
Pump function |
Pressure Pump |
|
Pump type |
Immersion Pump |
|
External pt100 sensor connection |
integrated |
|
Integrated programmer |
8x60 steps |
|
Temperature control |
PID2 |
|
Absolute temperature calibration |
3 Point Calibration |
|
Temperature displayTemperature display |
3.5" TFT Display |
|
Temperature settingTemperature setting |
Shaft Encoder |
|
Electronic Timer hr:min |
99 ... 59 |
