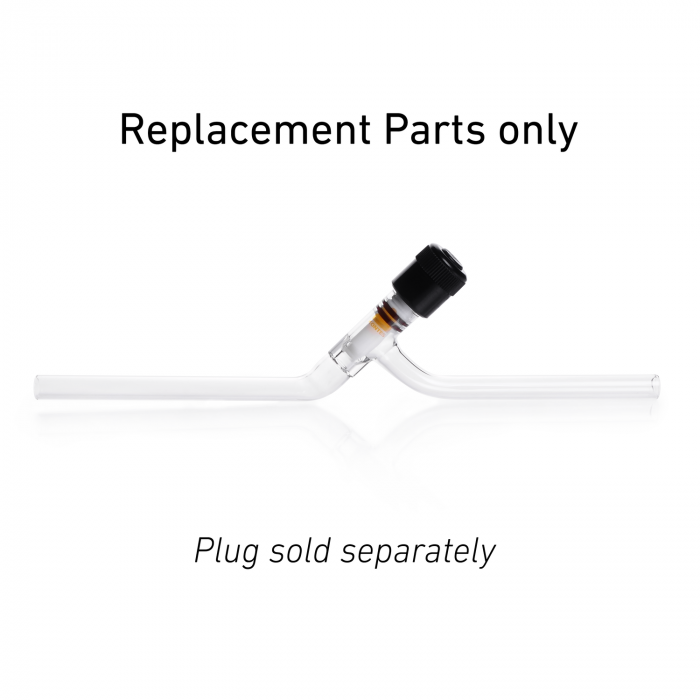

KIMBLE® HI-VAC® Low Hold-Up Valve, for PTFE Plugs with Extended Tip, 1/Case

• Manufactured from borosilicate glass 3.3
• T-valve configuration, without tip O-Ring exposure, allows closure of the bottom arm while vacuum or gases continue to flow through the sidearms.
• O-Rings are FKM
• Designed with a precision external thread for fine control
• Can be used as a bleed up to 1/2 turn
• Full open position is at 1-1/2 turns
• Primary seal is made with a FKM O-Ring on a tapered seat
• Non-rotating PTFE shaft can be used continuously at system temperatures of 230 °C or intermittently at 275 °C
