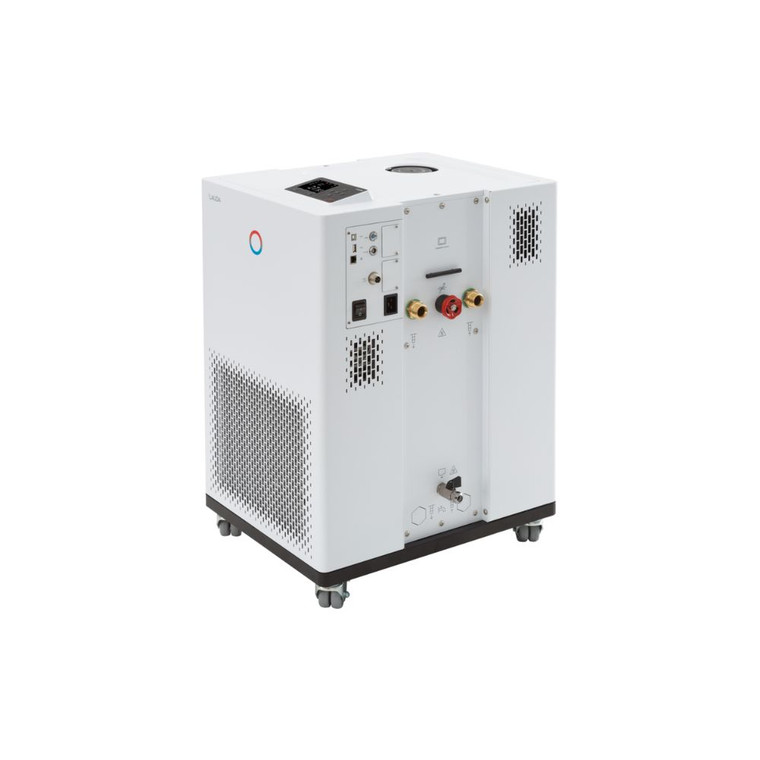

LAUDA-Brinkmann® Integral IN Circulation Chillers

LAUDA-Brinkmann®

SKU:

$25,745.00

Net 30 Terms Available

Earn points on this purchase

LAUDA-Brinkmann® Integral IN Circulation Chillers is a high-performance process thermostats designed for fast, precise temperature control in demanding laboratory, pilot plant, and production environments.With a wide temperature range (up to −90 °C to +220 °C) and powerful heating/cooling capacity, the Integral IN series ensur…

Quantity:

*We accept purchase orders from private, public, educational, & government institutions

Current Stock:

Request a Quote Request a Sample

Brochure

Operating Instruction

Working temperature range

-32 ... 120 °C

Ambient temperature range

5 ... 40 °C

Temperature stability

0.05 ± K

Heater power max.

2.7 kW

Max. power consumption

3.5 kW

Current consumption

16 A

Max. discharge pressure

4,5 bar

Max. pump flow pressure

45 L/min

In / Outlet connection thread (outside)

G 3/4"

Inlet/outlet hose size

3/4″

Min. filling volume

3.6 L

Max. filling volume

8.7 L

Dimensions (WxDxH)

430 x 550 x 760 mm

Weight

85 kg

Noise level

61 dB(A)

Power supply

208-220 V; 60 Hz

Power plug

Power cord with plug (NEMA 6-20P)

Certification

NRTL according to UL 1995:2018, CSA C22.2 no. 236-15 Ed.5th
