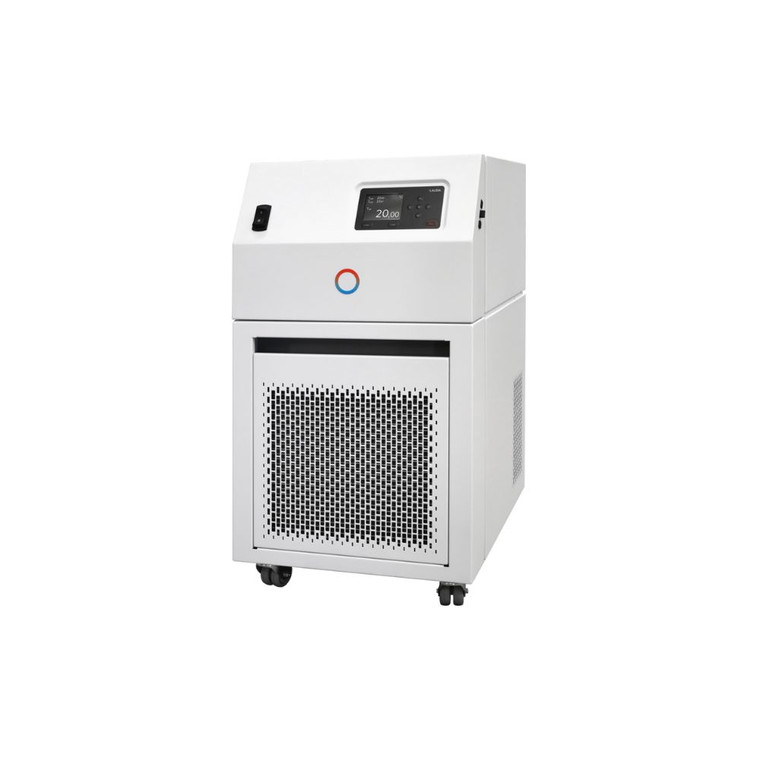

LAUDA-Brinkmann® Variocool NTRL VC Circulation Chillers

LAUDA-Brinkmann®

SKU:

$19,115.00

Net 30 Terms Available

Earn points on this purchase

LAUDA-Brinkmann® Variocool NRTL VC Circulation Chillers are high-performance, modular chillers designed for precise temperature control in labs, pilot plants, and industrial processes. With a temperature range of −25 °C to +80 °C and stability up to ±0.05 K, they offer reliable cooling/heating for sensitive applications…

Quantity:

*We accept purchase orders from private, public, educational, & government institutions

Current Stock:

Request a Quote Request a Sample

Brochure

Operating Instruction

Working temperature range

-20 ... 80 °C

Ambient temperature range

5 ... 40 °C

Temperature stability

0.05 ± K

Heater power min.

1.9 kW

Heater power max.

2.5 kW

Current consumption

16 A

Max. discharge pressure 50 Hz

3.1 bar

Max. flow rate (pressure) 50 Hz

37 L/min

Max. discharge pressure 60 Hz

4.1 bar

Pump Flow Max Pressure 60 Hz

44 L/min

In / Outlet connection thread (outside)

G 3/4"

Pressure adjustment

bypass

Min. filling volume

9 L

Max. filling volume

14 L

Noise level

59 dB(A)

Dimensions (WxDxH)

450 x 550 x 825 mm

Weight

65 kg

Power supply

200-230 V; 50/60 Hz

Power plug

Cold device plug (IEC 60320, C20)

Certification

NRTL according to UL 1995:2018, CSA C22.2 No.236:2015
