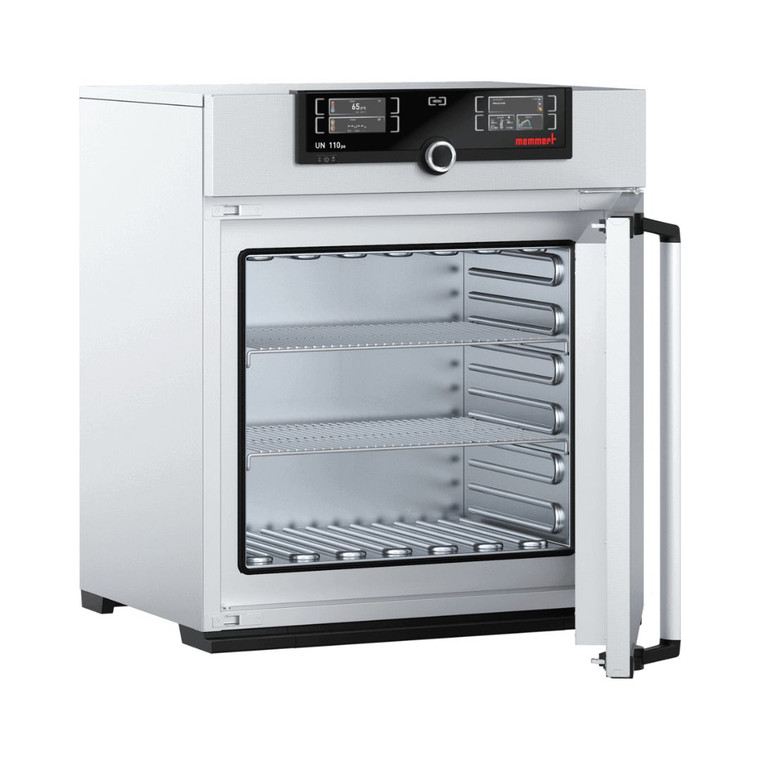

Memmert® UN110PA Paraffin Oven, 108L | 3.8 cu. ft.
Memmert®
$6,161.00
Earn points on this purchase
| Volume approx. | 3.8 Cu Ft (108 L) |
|---|---|
| Temperature range | +5°C above ambient temperature to +80°C |
| Setting temperature range | +20° to +80°C |
| Setting accuracy °C | 0.1°C |
| Contoller | TwinDISPLAY: dual TFT color touchscreens, manage data, save log files, monitor up to 32 devices online, automatic alarms emailed, archive of ramps and program sequences, real-time view of program sequences, Loops can be inserted within a temperature contol program at any place, download and manage programs via Ethernet or USB |
| Interfaces | Ethernet and USB |
| Housing | Textured stainless steel, rear zinc-plated steel, TFT color display with touchscreen, fully insulated stainless steel door |
| Interior | Stainless steel (ASTM 304) with all-round deep-drawn ribs to integrate the large-area heating with ceramic-metal sheath, nearly gastight |
| Fresh air | Admixture of pre-heated fresh air by electronically adjustable air flap |
| Chamber Dimensions (W x H x D) | 22 x 18.9 x 28.3 inches (560 x 480 x 720 mm) |
| Maximum number of grids/shelves | 5 (2 included) |
| Maximum loading per grid/shelf | 44 lbs (20 kg) |
| Maximum loading of chamber | 386 lbs (175 kg) |
| Maximum loading per slide-in drip tray | 6.6 lbs (3 kg) |
| Maximum loading per bottom drip tray | 6.6 lbs (3 kg) |
| Exterior Dimensions (W x H x D) | 29.3 x 34 x 23 inches (745 x 864 x 584 mm) |
| Standard works calibration certificate (measuring point chamber center) | °C +80 |
| Electrical | 115 V, 50/60 Hz, 1800 Watts (230 V available) |
| Net weight approx. | 165.3 lbs (75 kg) |
| Gross weight (packed in carton) approx. | 220.5 lbs (100 kg) |
| Shipping Dimensions (W x H x D) | 32.7 x 41.3 x 31.5 inches (830 x 1050 x 800 mm) |
