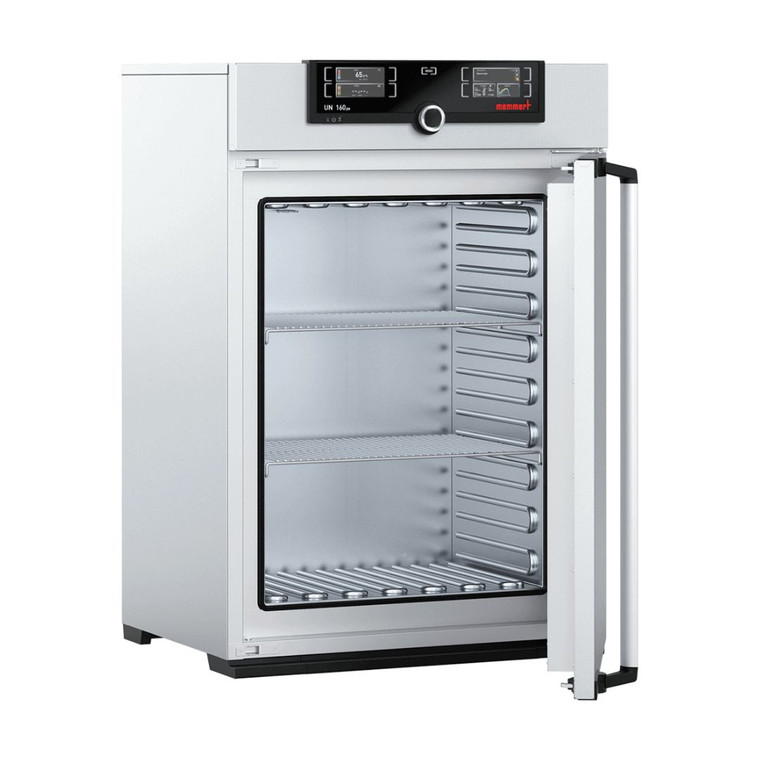

Memmert® UN160PA Paraffin Oven, 161L | 5.9 cu. ft.

Memmert®

SKU:

UN160PA

$7,327.00

Net 30 Terms Available

Earn points on this purchase

The Memmert UN160PA natural convection paraffin oven has a capacity of 5.9 Cu Ft (161 L) with a temperature range of Ambient +5° to 80°C and comes with dual digital display controllers with programmaning. Memmert UNpa paraffin ovens feature high-precision temperature control of the embedding medium paraffin in science and research. The …

Quantity:

*We accept purchase orders from private, public, educational, & government institutions

Current Stock:

Request a Quote Request a Sample

Technical Specifications:
Volume approx.	5.9 Cu Ft (161 L)
Temperature range	+5°C above ambient temperature to +80°C
Setting temperature range	+20° to +80°C
Setting accuracy °C	0.1°C
Contoller	TwinDISPLAY: dual TFT color touchscreens, manage data, save log files, monitor up to 32 devices online, automatic alarms emailed, archive of ramps and program sequences, real-time view of program sequences, Loops can be inserted within a temperature contol program at any place, download and manage programs via Ethernet or USB
Interfaces	Ethernet and USB
Housing	Textured stainless steel, rear zinc-plated steel, TFT color display with touchscreen, fully insulated stainless steel door
Interior	Stainless steel (ASTM 304) with all-round deep-drawn ribs to integrate the large-area heating with ceramic-metal sheath, nearly gastight
Fresh air	Admixture of pre-heated fresh air by electronically adjustable air flap
Chamber Dimensions (W x H x D)	22 x 28.3 x 15.7 inches (560 x 720 x 400 mm)
Maximum number of grids/shelves	8 (2 included)
Maximum loading per grid/shelf	44 lbs (20 kg)
Maximum loading of chamber	463 lbs (210 kg)
Maximum loading per slide-in drip tray	6.6 lbs (3 kg)
Maximum loading per bottom drip tray	6.6 lbs (3 kg)
Exterior Dimensions (W x H x D)	29.3 x 43.5 x 23 inches (745 x 1104 x 584 mm)
Standard works calibration certificate (measuring point chamber center)	°C +80
Electrical	115 V, 50/60 Hz, 1800 Watts (230 V available)
Net weight approx.	211.6 lbs (96 kg)
Gross weight (packed in carton) approx.	269 lbs (122 kg)
Shipping Dimensions (W x H x D)	32.7 x 51.2 x 31.5 inches (830 x 1300 x 800 mm)
