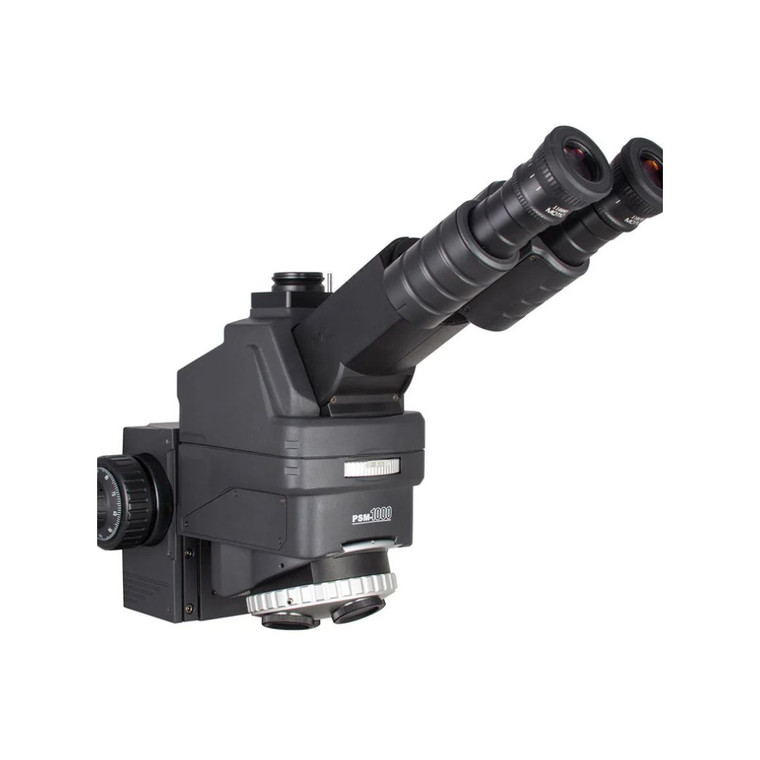

Motic® PSM-1000E Trinocular Upright Industrial Microscope, Standard System

The PSM1000E is an OEM-ready instrument for the best image results of flat, reflective specimens. Samples from metallurgy and the semiconductor field are treated by ELWD Plan Apochromatic objectives with a stupendous resolution power. The large FOV24 presents an erect, true sided image for fast orientation and manipulation work in a relaxed seating position with 3º-30º viewing angle.

Laser Ready Modular Microscope

• Ergonomic Design: The design of the PSM-1000 encourages the optimal amount of usability without sacrificing comfort.
• Laser Work: The PSM-1000 is standard equipped for laser work covering the spectrums ranging from 355nm [UV] to 532nm [Green] to 1064nm [IR].
• Focusing Block: Rated for load weights up to 45lbs., image focal planes can be adjusted at 1μm resolutions within the total 50mm stroke.
• Adjustable Nosepiece: Forward facing and equipped for four M26 x 1/36" (0.706) type objectives, the PSM-1000's nosepiece is dovetail mounted for moulding to different types of research and usage.
