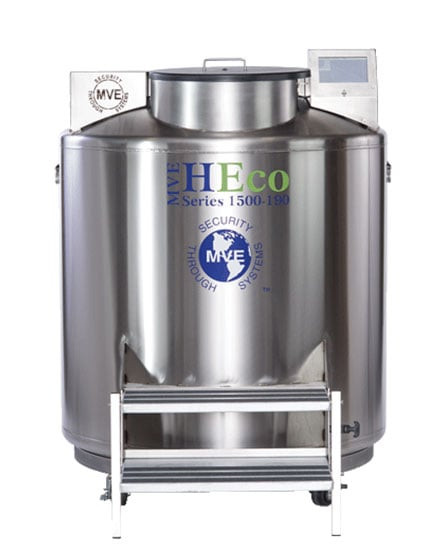

MVE® 1536P-190 LN2 Freezer w/ Full Auto Fill & Gas Bypass (Capacity: 36,400 x 2.0 ml vials)

Maximum Storage Capacity

   •  1.2 & 2 ml Vials (Internally Threaded): 36,400
   •  Quantity of Large Racks 100 cell boxes: 24
   •  Quantity of Mini Racks 25 cell boxes: 16
   •  Number of Shelves per Rack: 13

Performance

   • LN2 Capacity w/o Inventory : 730 L/est.
   • LN2 Capacity at Vapor Platform: 115 L/est.

Unit Dimensions

   • Neck Opening: 17.4" (442 mm)
   • Useable Internal Height: 28.7" (730 mm)
   • Inner Diameter: 38.5" (978 mm)
   • Overall Height : 54.7" (1389 mm)
   • Liftover Height: 37.3" (947 mm)
   • Door Width Requirement**: 42.0" (1067 mm)
   • Door Width Requirement, with handles**: 43.3" (1099 mm)
   • Depth of Extended Step: 7.9" (201 mm)
   • Weight Empty*:700 lb. (318 kg)
   • Weight Full (liquid)*: 2000 lb. (907 kg)

Blood Bag Capacities

   • 791 OS/U Medsep (25 ml) - Total bags: 2,905  -  Bags/Frame: 7  -  No. Frames: 415
   • 4R9951 (50 ml) - Total bags: 1,488  -  Bags/Frame: 6  -  No. Frames: 248
   • 4R9953 (250 ml) - Total bags: 812  -  Bags/Frame: 4  -  No. Frames: 203
   • 4R9955 (500 ml) - Total bags: 608  -  Bags/Frame: 4  -  No. Frames: 152
   • DF200 (200 ml) - Total bags: 496  -  Bags/Frame: 4  -  No. Frames: 124
   • DF700 (700 ml) - Total bags: 256  -  Bags/Frame: 4  -  No. Frames: 64

* Without inventory
** Minimum width required for vessel to pass through opening. Footprint may vary. Contact Tech Service for detailed drawings.

 TWO Year Parts Warranty • Five Year Vacuum Warranty

Conforms to MDD 93/42/EEC, the Medical Device Directive for the EU.Freezer systems UL/C-UL listed.
