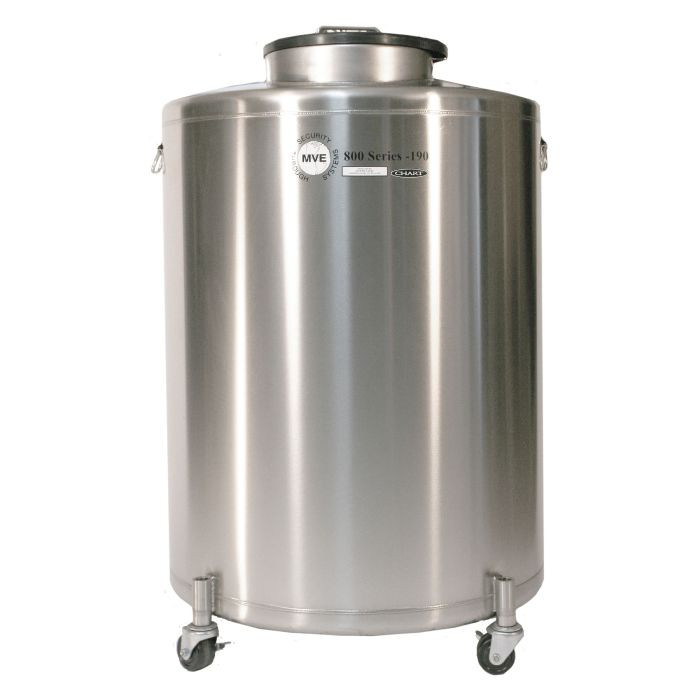

MVE® 816P-2T-190 Stock Series Liquid Nitrogen LN2 Cryogenic Freezer Basic- No Controller

Maximum Storage Capacity

   •  1.2 & 2 ml Vials (Internally Threaded): 10,500
   •  Quantity of Large Racks 100 cell boxes: N/A
   •  Quantity of Large Racks 25 cell boxes: N/A
   •  Number of Shelves per rack: N/A
   •  High security Straw Capacity (0.5 ml): 31,584
   •  Number of Canisters (73 mm): 94
   •  Goblets/Canister : Straws/Goblet: 2 : 168
   •  Number of SUC-1 Canisters (2.5" x 2.5" x 11"): 115
   •  Number of 1.2 ml Vials on Canes: 16,560
   •  Number of 2.0 ml Vials on Canes: 9,200
   •  Number of 1/2 cc Straws 10/cane: 35,650

Performance

   • LN2 Capacity w/o Inventory: 381 liters est.
   • LN2 Capacity at Platform Vapor: 56

Unit Dimensions

   • Neck Opening: 12.5" (317 mm)
   • Useable Internal Height: 13.0" (330 mm) per level
   • Inner Diameter: 28.70" (728 mm) top tier - 27.70" (702 mm) bottom tier
   • Overall Height l: 50.0" (1271 mm)
   • Door Width Requirement**: 32" (813 mm)
   • Weight Empty: 475 lbs. (215 kg)
   • Weight Full: 1155 lbs. (524 kg)

* Static evaporation rate and static holding time are nominal. Actual rate and holding time will be affected by the nature of caintainer use, atmoshperic conditions, and manufacturing tolerances.
** Minimum width required for vessel to pass through opening. Footprint may vary. Contact Tech Service for detailed drawings.

TWO Year Parts Warranty • FIVE Year Vacuum Warranty
Conforms to MDD 93/42/EEC, the Medical Device Directive for the EU.
