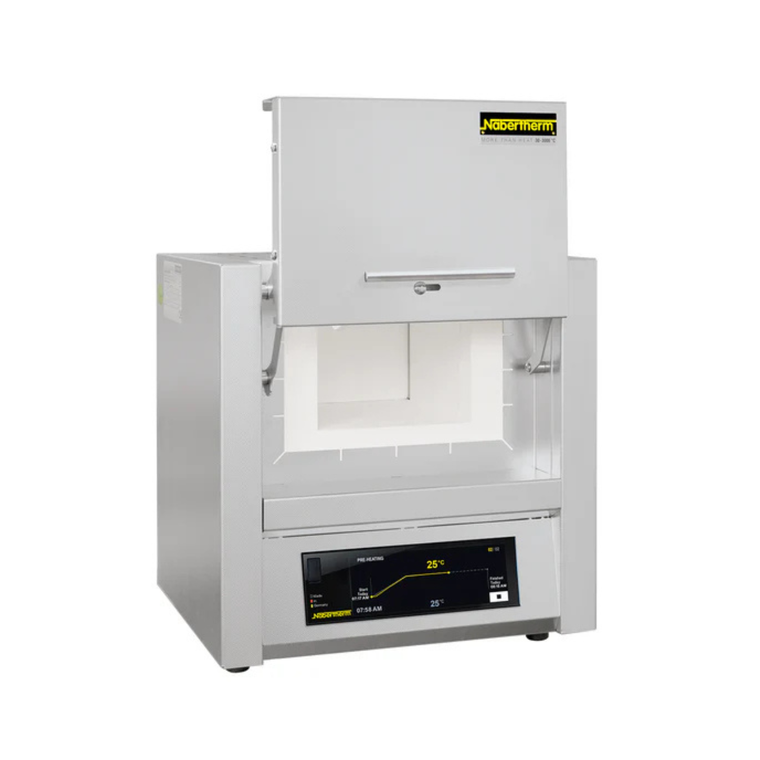

Nabertherm™ L-054H2ON2 (LT Series) 5/12/C550 Muffle Furnace with C550 Controller, 5L

The Nabertherm™ L-054H2ON2 is designed for reliable daily laboratory use. These models are known for high-quality construction, modern design, and consistent performance. They are available with either a flap door or lift door at no additional cost, providing flexibility based on user preference and safety requirements.

Key Features
Tmax up to 1100°C or 1200°C depending on model
Heating from two or three sides using ceramic heating plates for uniform heat distribution
Temperature uniformity of ±5 K in an empty chamber with closed fresh-air inlet above 800°C according to DIN 17052-1
Type N thermocouple for 1100°C models and Type S thermocouple for 1200°C models
Ceramic heating plates with integrated, protected, and easily replaceable heating elements
Choice of flap door or lift door with outward-facing hot surface for improved operator safety
Dual-shell stainless-steel housing with fan cooling to maintain low external surface temperature
Insulation materials compliant with EC Regulation No. 1272/2008 (CLP) safety standards
Adjustable air inlet integrated into the door for controlled airflow
Rear-mounted exhaust air outlet for efficient ventilation
B510 or R7 controller (depending on model) with 5 programs and 4 segments each
Solid-state relays for quiet and reliable operation
