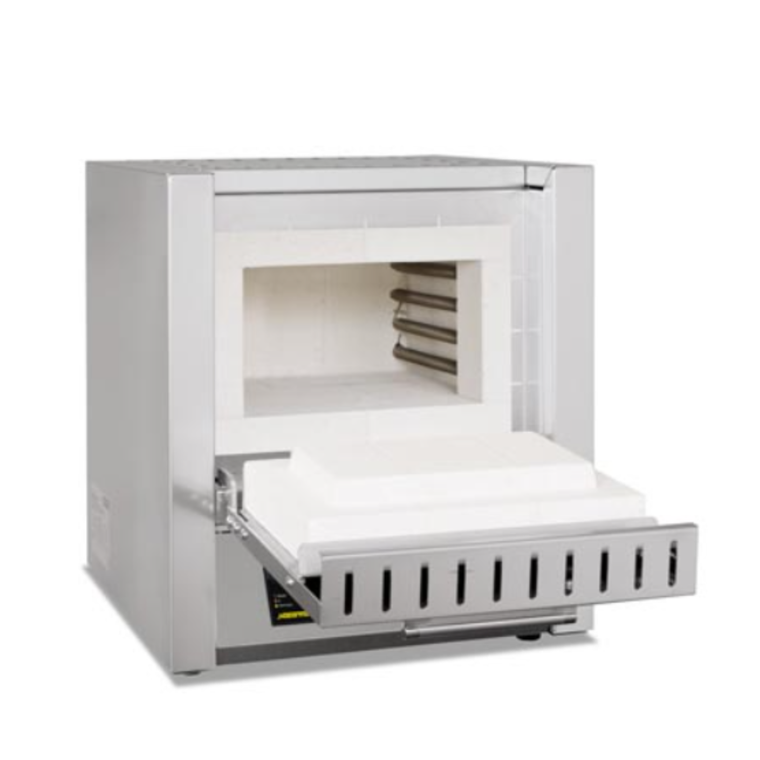

Nabertherm™ L-055H2ANO (L Series) 5/12/C550 Muffle Furnace with C550 Controller, 5L

More About this Item:

The Nabertherm L 5/12/C550 muffle furnace is a compact, high-performance unit with a 5-liter chamber capacity and a maximum temperature of 1200°C. It is designed for precise thermal processing such as sintering and material testing. Its efficient insulation and dual-shell construction ensure excellent temperature uniformity and energy efficiency.

Key Features:
Maximum temperature of 1200°C
Heating from two sides with ceramic heating plates for uniform temperature distribution
Temperature uniformity of ±5 K at temperatures above 800°C (DIN 17052-1)
Thermocouple type S (1200°C)
Ceramic heating plates with integrated, easy-to-replace heating elements
Flap door that can be used as a work platform
Dual-shell stainless steel housing with fan cooling for low surface temperatures
Adjustable air inlet in the door and exhaust outlet in the rear wall
Solid-state relays for quiet operation
Safe insulation materials compliant with EC Regulation No. 1272/2008 (CLP)

Controller:
C550 controller with 10 programs and up to 20 segments per program
NTLog Basic for process data recording via USB flash drive

This muffle furnace delivers precise, reliable, and energy-efficient thermal performance, making it well-suited for advanced laboratory applications.
