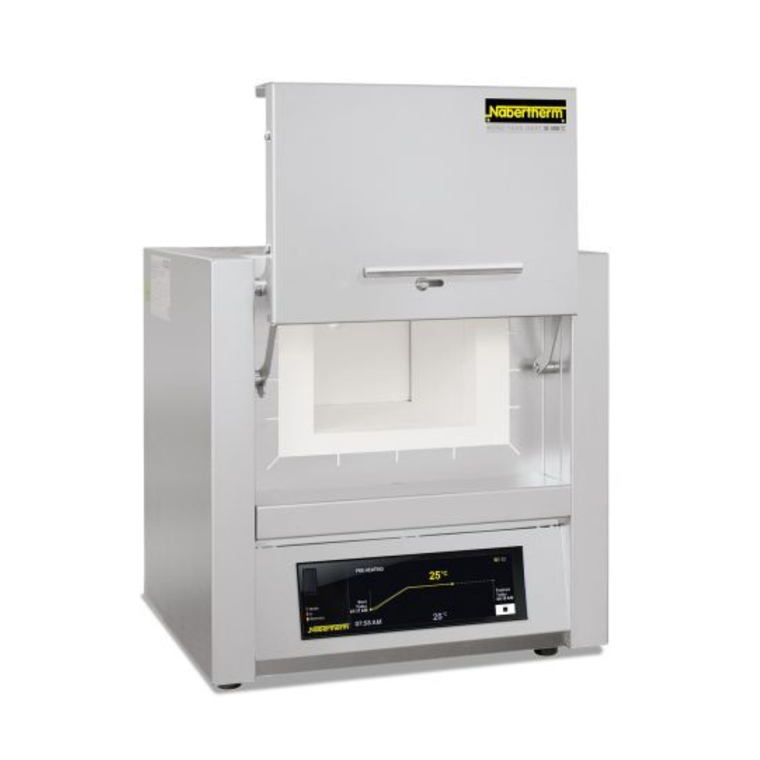

Nabertherm™ L-244H1LN1 (LT Series) 24/11/B510 Muffle Furnace with B510 Controller, 24L

The Nabertherm™ L-244H1LN1 is proven for daily laboratory use, offering excellent workmanship, modern design, and high reliability. These models are supplied with either a flap door or lift door at no additional cost.

Standard Features:
Maximum temperature: 1100°C or 1200°C
Heating from two sides with ceramic heating plates (three-sided heating for L 24/11 to LT 40/12) for excellent temperature uniformity
Temperature uniformity of ±5 K at >800°C (empty chamber, closed fresh-air inlet, DIN 17052-1)
Thermocouple type N (1100°C) or type S (1200°C)
Ceramic heating plates with integrated, protected, and easily replaceable heating elements
Flap door (L) usable as a work platform or lift door (LT) with heat protection for the operator
Dual-shell stainless steel housing with additional fan cooling for low external surface temperature
Insulation materials compliant with EC Regulation No. 1272/2008 (CLP)
Adjustable air inlet integrated in the door
Exhaust air outlet located in the rear wall
Solid-state relays for quiet, low-noise operation
Defined use within operating instructions

More About this Item:
The Nabertherm™ L-244H1LN1 in this series provide consistent thermal performance, reliable operation, and flexible door options, making them suitable for a wide range of laboratory heating applications.
