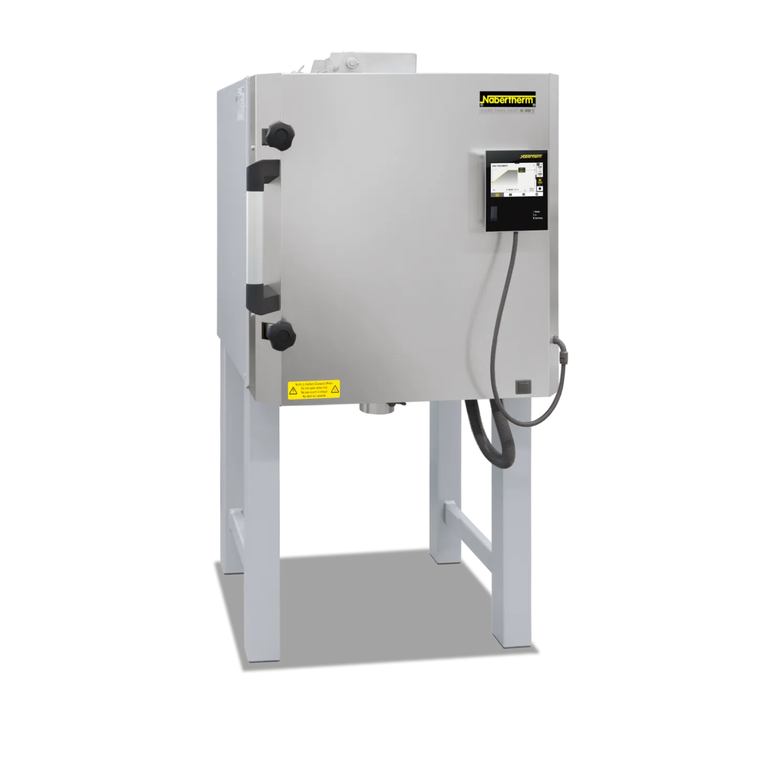

Nabertherm™ LF0332NMNE (LF Series) LF30/13 Chamber Furnace with C540 Controller, 30L

Nabertherm™ LF0332NMNE is designed for a wide range of laboratory, research, and glass processing applications. Its advanced insulation system combines refractory corner bricks with low heat-storage fiber insulation to provide excellent temperature uniformity, reduced energy consumption, and faster heating and cooling cycles. The furnace features five-sided heating, a high chamber design, and a durable dual-shell housing with rear ventilation for reliable operation and long service life. With flexible configuration options and integrated process data logging capabilities, it can be adapted to meet a variety of thermal processing requirements.

Key Features:

Maximum Temperature: 1300°C
Capacity: 30 Liters
Voltage: 480V
Designed for laboratory, research, and glass processing applications
Five-sided heating for excellent temperature uniformity
High chamber design for enhanced processing flexibility
Dual-shell housing with rear ventilation for low exterior temperatures
Long-life heating elements mounted on support tubes
Removable door-mounted B500 touch controller
5 programs with 4 segments each
Embedded SiC floor plate protects bottom heating elements
High-quality fiber insulation with refractory corner bricks
Fast heating and cooling cycles
Insulation materials free from refractory ceramic fiber (RCF)
Motorized exhaust air flap
Adjustable air inlet integrated into the furnace floor
Process data recording via NTLog Basic and USB flash drive
Base included
Compatible with a wide range of optional accessories and equipment
Designed for operation according to manufacturer guidelines and instructions
