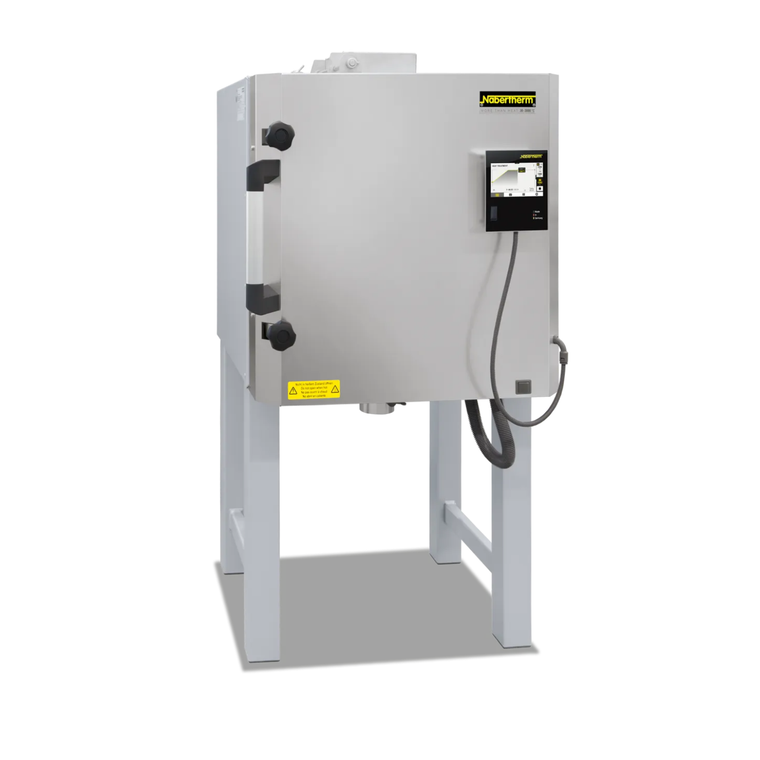

Nabertherm™ LF0342NKNE (LF Series) LF30/14 Chamber Furnace with B500 Controller, 30L

Nabertherm™ LF0342NKNE is designed for a wide range of glass applications and provides reliable performance for precise thermal processing. It uses a combination of lightweight refractory brick insulation in the frame and low thermal inertia fibrous material, which enables faster cooling and improved efficiency. With five heating surfaces and an advanced insulation structure, it delivers strong thermal performance and uniform heat distribution even under full load conditions. The furnace is equipped with the B500 programmer, offering multiple programming options with 5 programs of 4 segments each, and it is also available with the C540 programmer for expanded control capabilities. Operation is simplified through a motorized exhaust hatch, a continuously adjustable air intake damper in the furnace floor, and a quick-closing door system. A wide range of optional configurations makes this chamber furnace suitable for various individual application needs.

This chamber furnace is engineered for stable temperature control and consistent results in both laboratory and industrial glass processing environments. Its efficient insulation system and optimized airflow design help reduce heat loss, improve energy efficiency, and maintain precise operating conditions throughout the process cycle.

Key Features:

Maximum Temperature: 1400°C
Five heating surfaces for uniform heat distribution
Combined insulation with lightweight refractory bricks and fibrous material
Fast cooling due to low thermal inertia insulation
High energy efficiency even under full load
B500 programmer with 5 programs and 4 segments each
Also available with C540 programmer option
Motorized exhaust hatch for easy operation
Continuously adjustable air intake damper in furnace floor
Quick-closing door for safe handling
Suitable for a wide range of glass applications
Multiple optional configurations available
