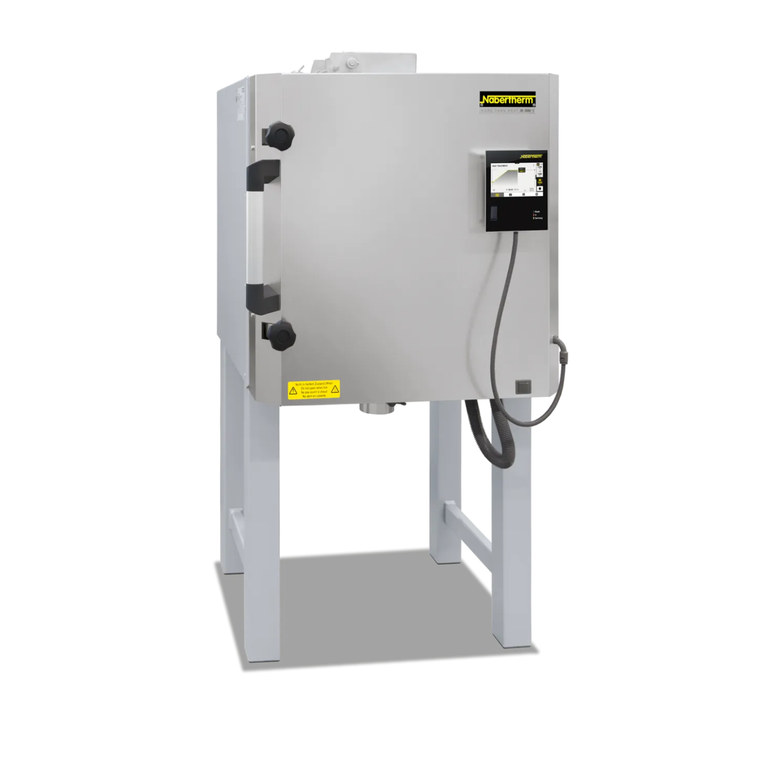

Nabertherm™ LH0232NKNE (LH Series) LH15/13 Chamber Furnace with B500 Controller, 15L

Nabertherm™ LH0232NKNE is designed for reliable high-temperature processing and offers robust insulation made of lightweight refractory bricks. With a wide range of optional equipment, these chamber furnaces can be optimally adapted to different process requirements.

This furnace operates at a maximum temperature of 1300°C and features a dual-shell housing with rear ventilation to maintain low external surface temperatures. Its five-sided heating system ensures excellent temperature uniformity, while heating elements mounted on support tubes provide free heat radiation and long service life. The controller is mounted on the furnace door and can be removed for convenient operation. A SiC plate embedded in the floor protects the bottom heating system and provides a stable flat stacking surface. The furnace uses multi-layer fiber-free insulation made of lightweight refractory bricks with special backup insulation for improved efficiency. The hand-fitted brick-on-brick door seal ensures tight closure, while short heating times are achieved through high installed power. Additional features include a side vent with bypass connection for exhaust, a self-supporting arch for high stability and dust protection, a quick-lock door system, a freely adjustable air intake in the furnace floor, and an included stand.

Key Features:

Maximum Temperature: 1300°C
Five-sided heating for excellent temperature uniformity
Robust insulation with lightweight refractory bricks
Multi-layer fiber-free insulation with backup insulation
Dual-shell housing with rear ventilation for low surface temperature
Heating elements on support tubes for long service life
Removable door-mounted controller for easy operation
Embedded SiC floor plate for protection and stable stacking surface
Brick-on-brick door seal for tight sealing
Short heating times due to high installed power
Side vent with bypass connection for exhaust system
Self-supporting arch design for durability and dust protection
Quick-lock door mechanism
Adjustable air intake slide in furnace floor
Stand included
Defined application within operating instructions
