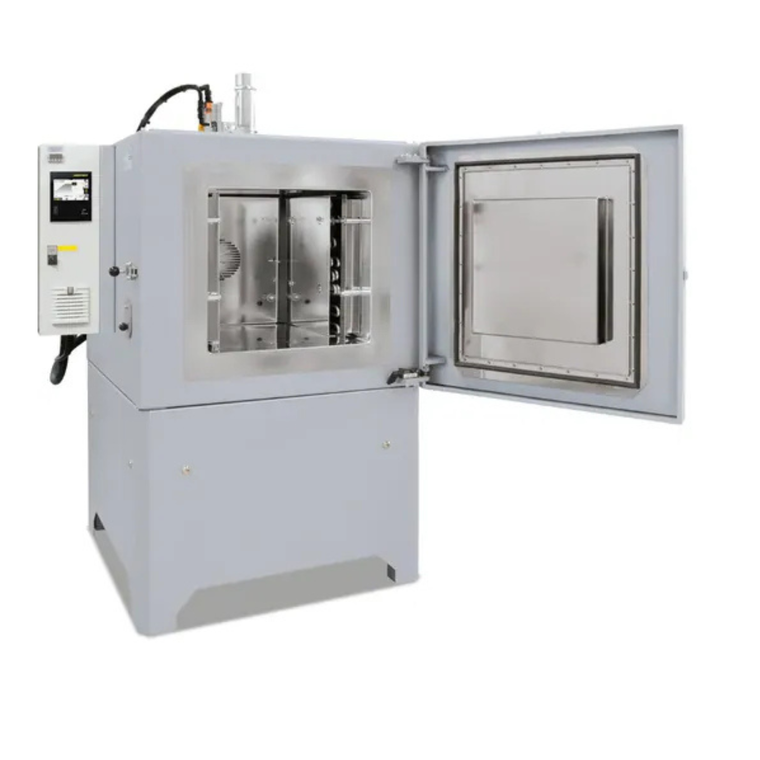

Nabertherm™ NA-0681M2 (NA Series) NA60/85 Forced Air Circulation Furnace with C540 Controller, 60L

Nabertherm™ NA-0681M2 are available with maximum temperatures of 450°C, 650°C, or 850°C. They feature horizontal air circulation with optimal airflow distribution through stainless steel air deflectors, ensuring consistent heating throughout the chamber. A right-hinged pivoting door allows convenient access, while temperature uniformity according to DIN 17052-1 of up to ±4°C (±5°C for selected models) is achieved in the empty usable space. The ovens come equipped with a base plate and strips for additional insert plates, with some models designed as tabletop units. Controller options include B500/B510 and C540/C550 systems, and NTLog Basic enables process data recording via USB flash drive for improved monitoring and documentation.

Key Features:

Maximum Temperature: 450°C / 650°C / 850°C (model dependent)
Horizontal air circulation for uniform heat distribution
Stainless steel air deflectors for optimized airflow
Excellent temperature uniformity up to ±4°C (DIN 17052-1)
Pivoting right-hinged door for easy operation
Modular design for flexible process adaptation
Base plate and insert plate support system included (model dependent)
Base frame included (tabletop design for selected models)
B500/B510 and C540/C550 controller options
NTLog Basic USB data recording for process monitoring
