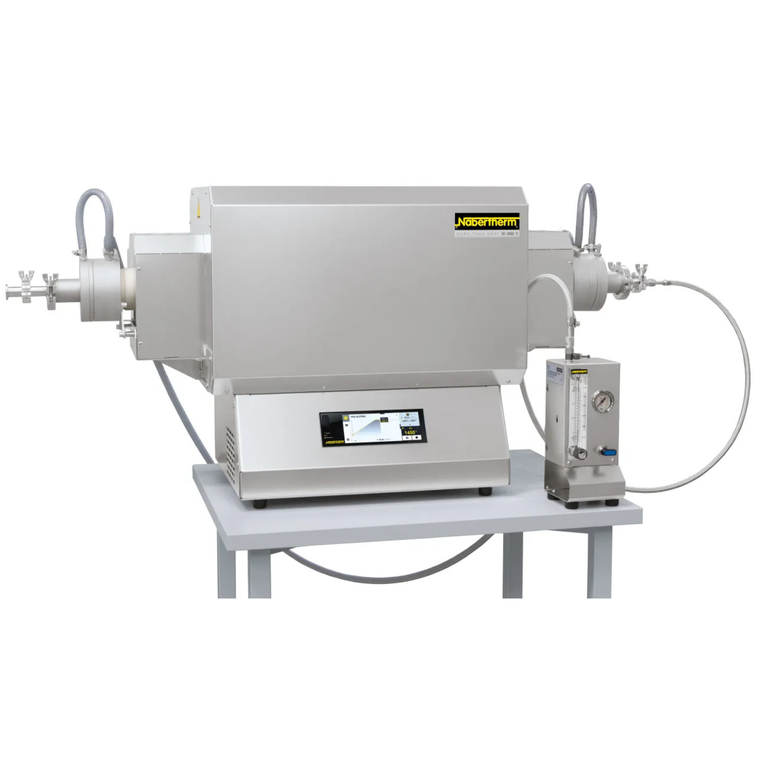

Nabertherm™ RC182L5A (RHTC Series) 80/230/16 High-Temperature Tube Furnace with B510 Controller

Nabertherm™ RC182L5A is  designed for universal high-temperature applications, using SiC rod heating elements and integrated switchgear with controller. They offer a cost-effective solution for processes in the high-temperature range while maintaining strong performance and flexibility. Standard mounting options for accessories allow easy adaptation to different applications. The SiC heating elements are arranged parallel to the working tube to ensure excellent temperature uniformity. The system is built for reliable operation with a focus on durability, safety, and precise thermal control.

Key Features:
Maximum temperature up to 1600°C
Working temperature up to 1500°C with increased wear at higher levels
Dual-shell ventilated stainless-steel housing for stability and low surface temperature
Active housing cooling for improved thermal safety
Ceramic working tube C 799 supplied with two fiber plugs for air operation
Type S thermocouple for accurate high-temperature measurement
Solid-state relays for low-noise and reliable switching
SiC heating elements that are easy to replace
Insulation materials compliant with EC Regulation No. 1272/2008 (CLP) without hazardous fiber classification
NTLog Basic system for USB-based process data recording
P580 touch controller with 50 programs and 40 segments each
Defined application use according to operating instructions
