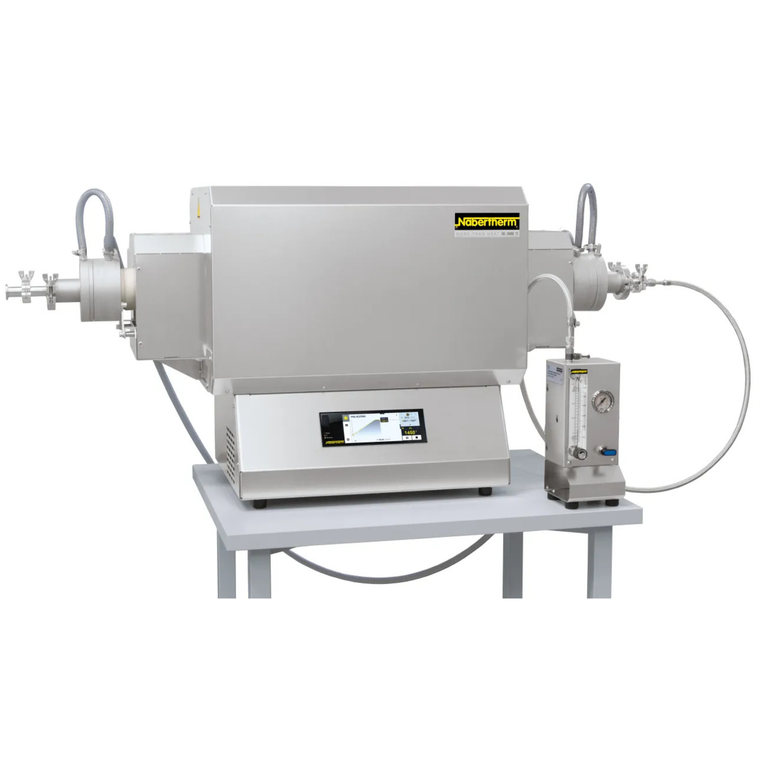

Nabertherm™ RS53O3B (RS Series) RS 170/1000/13 Tube Furnace with C550 Controller

Nabertherm™ RS53O3B designed for both horizontal operation and, with an optional frame, vertical operation. Their split-type construction allows easy access to the working tube, making replacement and exchange of tubes made from different materials simple and convenient. These furnaces can be customized with a wide range of accessories to meet specific process requirements. Optional gas supply systems enable operation under protective gas atmospheres, process gases, or vacuum conditions. In addition to standard controllers, advanced PLC control systems can be integrated for enhanced process management and automation.

Key Features:
Maximum operating temperature of 1100°C or 1300°C depending on the model
Heated lengths available from 250 mm to 1000 mm
Supports working tubes with outer diameters up to 170 mm
Single-zone heating design for reliable thermal processing
Dual-shell ventilated stainless-steel housing ensures low surface temperatures and high structural stability
Insulation materials comply with EC Regulation No. 1272/2008 (CLP) and do not contain refractory ceramic fiber (RCF)
Horizontal tabletop configuration with external switchboard and controller
2-meter connecting cable protected by a metal conduit
Split-type furnace design for easy insertion and replacement of working tubes at temperatures below 180°C
Ceramic working tube C530 supplied with two fiber plugs for operation in air atmosphere
Type N thermocouple for 1100°C models or Type S thermocouple for 1300°C models
Solid-state relays provide quiet and maintenance-friendly operation
Heating elements mounted on support tubes for efficient free-radiation heating
C550 touch-screen controller with 10 programs and 20 segments per program
NTLog Basic enables process data recording via USB flash drive
Suitable for operation within the parameters specified in the operating instructions
