Compact. Precise. Lab-Ready.

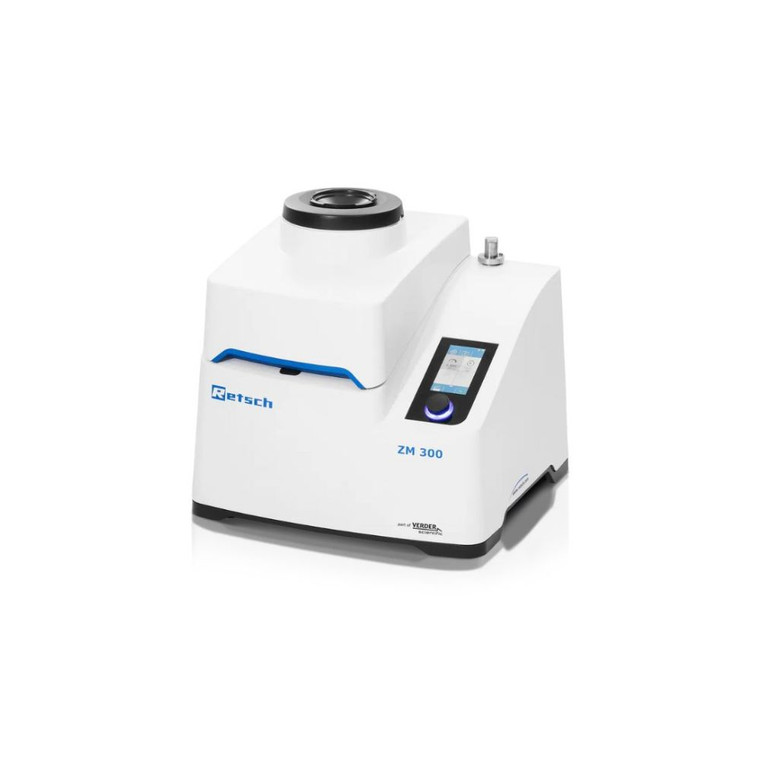

Retsch® Roto Mills ZM 300 Ultra Centrifugal Mill, Compact Benchtop Model | 100-120V, 50/60Hz
Retsch®
$14,180.00
Earn points on this purchase
| Applications | fine grinding |
| Field of application | agriculture, biology, chemistry / plastics, construction materials, engineering / electronics, environment / recycling, food, geology / metallurgy, medicine / pharmaceuticals |
| Feed material | soft, medium-hard, brittle, fibrous |
| Size reduction principle | impact, shearing |
| Material feed size* | < 10 mm |
| Final fineness* | < 40 µm |
| Batch size / feed quantity* | 300 ml with standard cassette 600 ml with volume cassette 4500 ml / 2500 ml / 450 ml / 230 ml with cyclone |
| Speed at 50 Hz (60 Hz) | 6,000 - 23,000 min-1, free selectable |
| Rotor peripheral speed | 31 - 119 m/s |
| Rotor diameter | 99 mm |
| Types of rotors | 6-tooth rotor / 12-tooth rotor / 24-tooth rotor |
| Material of grinding tools | stainless steel, titanium, stainless steel with wear-resistant coating |
| Sieve sizes | trapezoid holes 0.08 / 0.12 / 0.20 / 0.25 / 0.50 / 0.75 / 1.00 / 1.50 / 2.00 mm round holes 3.00 / 4.00 / 5.00 / 6.00 / 10.00 mm |
| Setting of grinding time | no |
| Collector capacity | 900 ml with standard cassette 1200 ml with volume cassette 5000 ml / 3000 ml / 500 ml / 250 ml with cyclone |
| Drive | 3-phase asynchronous motor with frequency converter |
| Power connection | 1-phase |
| Protection code | IP 30 |
| Power consumption | 1750 VA ((200..240V), 1400 VA (110..120V) |
| W x H x D closed | 452 x 431 x 426 mm |
| Net weight | ~ 38 kg |
| Standards | CE |
