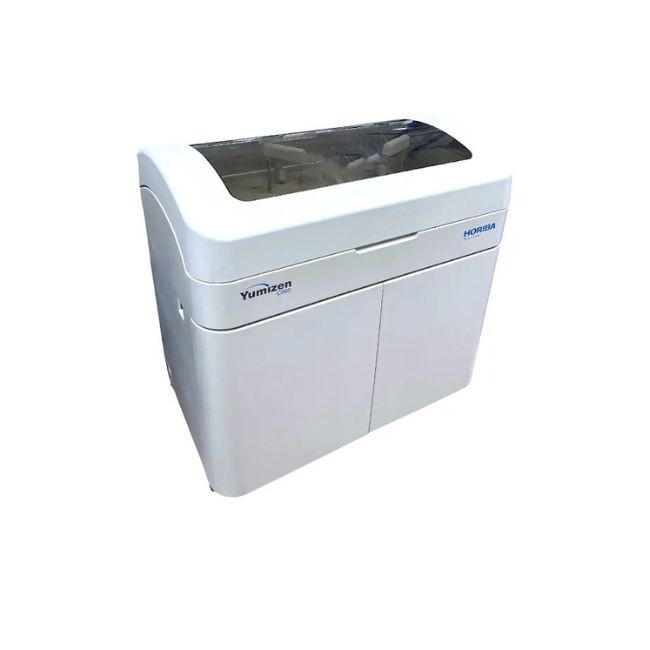

Yumizen C560 Chemistry Analyzer (5300002219) | HORIBA® (Pointe Scientific)
HORIBA® (Pointe Scientific)
$62,487.50
Earn points on this purchase
| Category | Specification |
|---|---|
| System Type | Fully automated, discrete, random-access chemistry analyzer |
| Throughput | Up to 400 photometric tests/hour; up to 240 ISE tests/hour (optional) |
| Sample Capacity | 90 sample positions (tubes or cups); STAT capability included |
| Sample Volume | 1.5 – 45 µL |
| Reagent Capacity | 80 refrigerated positions (2–10 °C) |
| Reagent Volume | R1: 45–350 µL; R2–R4: 10–350 µL |
| Reaction Volume | 120 – 360 µL |
| Cuvettes | 90 reusable cuvettes; 5 mm optical path length |
| Mixing System | Dual independent mixers |
| Temperature Control | Reaction chamber at 37 °C ± 0.1 °C |
| Photometry | Halogen-tungsten lamp; 12 wavelengths: 340–800 nm |
| Absorbance Range | Up to 3.3 Abs (10 mm equivalent); resolution 0.0001 Abs |
| ISE Module (Optional) | Na⁺, K⁺, Cl⁻ (indirect ISE); up to 240 tests/hour |
| Calibration Modes | 1-, 2-, multi-point; Logit-Log 4P/5P, spline, exponential, etc. |
| QC Features | Westgard rules, Levy-Jennings plots, twin plot, cumulative sum |
| Carryover | < 0.05% |
| Probe Features | Liquid level detection, clot detection, anti-collision, auto-wash |
| Barcoding | Integrated reader (sample & reagent); LIS connectivity |
| Interface | Bi-directional LIS support |
| Dimensions | Approx. 46" W × 28" D × 45" H (117 × 70 × 115 cm) |
| Weight | ~661 lb (300 kg) |
| Power Requirements | 110–130 V / 60 Hz or 200–240 V / 50–60 Hz |
| Operating Conditions | 15–30 °C; 35–85% RH (non-condensing) |
